Description
General Information
Manufacturer: Tripp Lite by EatonManufacturer Part Number: N52025M
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Model: N520-25M

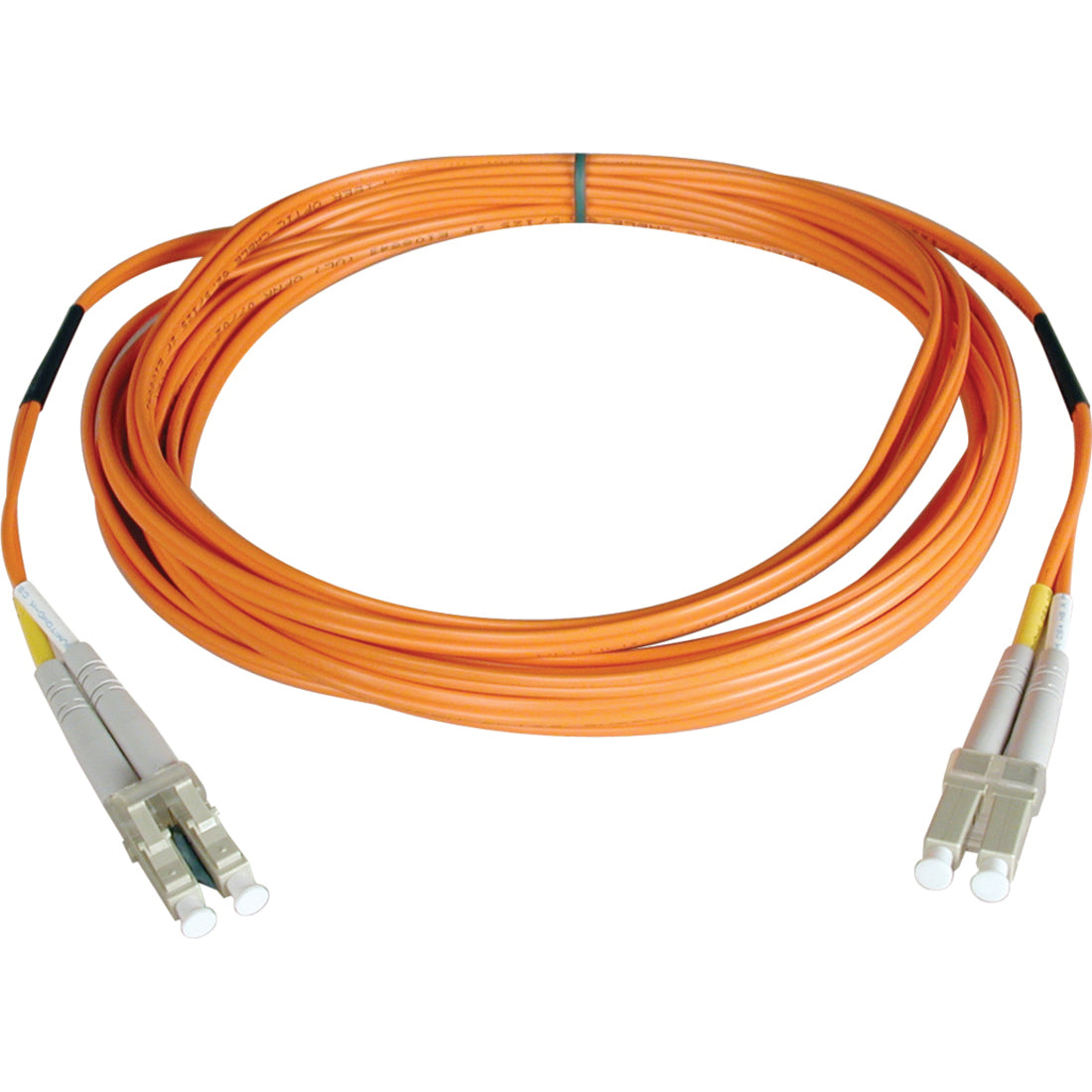

Product Name: Duplex Fibre Channel Patch Cable
Marketing Information:
Tripp Lite's 25-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 30, and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Product Type: Network Cable
Technical Information
Cable Type: Fiber OpticCable Characteristic: Patch Cable
Core/Cladding Diameter: 50/125 µm
Cable Length: 82 ft
Connector Type on First End: LC - Male
Connector on First End Details: 2 x LC - Male
Connector Type on Second End: LC - Male
Connector on Second End Details: 2 x LC - Male
Jacket Type: Plenum
Miscellaneous
Package Contents:- Duplex Fibre Channel Patch Cable
- 25M Duplex MMF Cable LC/LC 50/125 Fiber
Additional Information:
- Fiber type: all glass graded index
- Core diameter: Two 50+/-3 microns
- CLAD diameter: 125+/-2 microns
- Primary coating diameter: 245+/-15 microns
- Primary coating material: acrylate
- Secondary coating diameter: 900+/-50 microns
- Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
- Proof test level: 100,000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Certifications & Standards:
- FDDI
- OFNR rated
Country of Origin: China
Warranty
Limited Warranty: Lifetime
