Description
User-Manual
Manufacturer Part Number: UM.QB7AA.006
Manufacturer Website Address: http://www.acer.ca
Brand Name: Acer
Product Series: B7
Product Model: B247YU

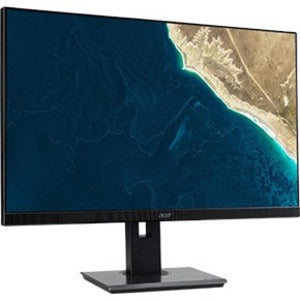

Product Name: B247YU Widescreen LCD Monitor
Marketing Information: Infused with Color
Product Type: LCD Monitor
Screen Size Class: 24"
Viewable Screen Size: 23.8"
Screen Mode: WQHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4 ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.20600 mm x 0.20600 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Mount Type: Wall Mountable
Horizontal Frequency: 30 kHz to 120 kHz - DisplayPort,30 kHz to 120 kHz - HDMI
Vertical Frequency: 48 Hz to 75 Hz
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 100,000,000:1
Brightness: 300 cd/m²
Tearing Prevention Technology: Adaptive Sync
Color Gamut: 72% NTSC
Speakers: Yes
DisplayPort: Yes
Mini DisplayPort: Yes
Number of HDMI Inputs: 2
Number of DisplayPorts: 1
Off-Mode Power Consumption: 270 mW
Color Family: Black
Height: 12.72" (323 mm)
Width: 21.26" (540 mm)
Depth: 2.56" (65 mm)
Height with Stand: 19.65" (499 mm)
Width with Stand: 21.26" (540 mm)
Depth with Stand: 7.60" (193 mm)
Weight (Approximate): 8.16 lb (3700 g)
Weight with Stand (Approximate): 12.32 lb (5590 g)
B247YU Widescreen LCD Monitor
1 x Displayport Cable
Power Cord
Country of Origin: China
TCO Certified: Yes
Environmentally Friendly: Yes
Environmental Certification: TCO Certified
General Information
Manufacturer: Acer, IncManufacturer Part Number: UM.QB7AA.006
Manufacturer Website Address: http://www.acer.ca
Brand Name: Acer
Product Series: B7
Product Model: B247YU
Product Name: B247YU Widescreen LCD Monitor
Marketing Information: Infused with Color
In the professional world, accuracy is everything. Utilize color-enhancing and eyecare technologies for pinpoint precision.
Product Type: LCD Monitor
Technical Information
Number of Screens: 1Screen Size Class: 24"
Viewable Screen Size: 23.8"
Screen Mode: WQHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4 ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.20600 mm x 0.20600 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Mount Type: Wall Mountable
Horizontal Frequency: 30 kHz to 120 kHz - DisplayPort,30 kHz to 120 kHz - HDMI
Vertical Frequency: 48 Hz to 75 Hz
Video
Maximum Resolution: 2560 x 1440Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 100,000,000:1
Brightness: 300 cd/m²
Tearing Prevention Technology: Adaptive Sync
Color Gamut: 72% NTSC
Audio
Number of Speakers: 2Speakers: Yes
Interfaces/Ports
HDMI: YesDisplayPort: Yes
Mini DisplayPort: Yes
Number of HDMI Inputs: 2
Number of DisplayPorts: 1
Power Description
Standby Power Consumption: 360 mWOff-Mode Power Consumption: 270 mW
Physical Characteristics
VESA Mount Compatible: YesColor Family: Black
Height: 12.72" (323 mm)
Width: 21.26" (540 mm)
Depth: 2.56" (65 mm)
Height with Stand: 19.65" (499 mm)
Width with Stand: 21.26" (540 mm)
Depth with Stand: 7.60" (193 mm)
Weight (Approximate): 8.16 lb (3700 g)
Weight with Stand (Approximate): 12.32 lb (5590 g)
Miscellaneous
Package Contents:Country of Origin: China
TCO Certified: Yes
Environmentally Friendly: Yes
Environmental Certification: TCO Certified
Warranty
Limited Warranty: 3 Year
