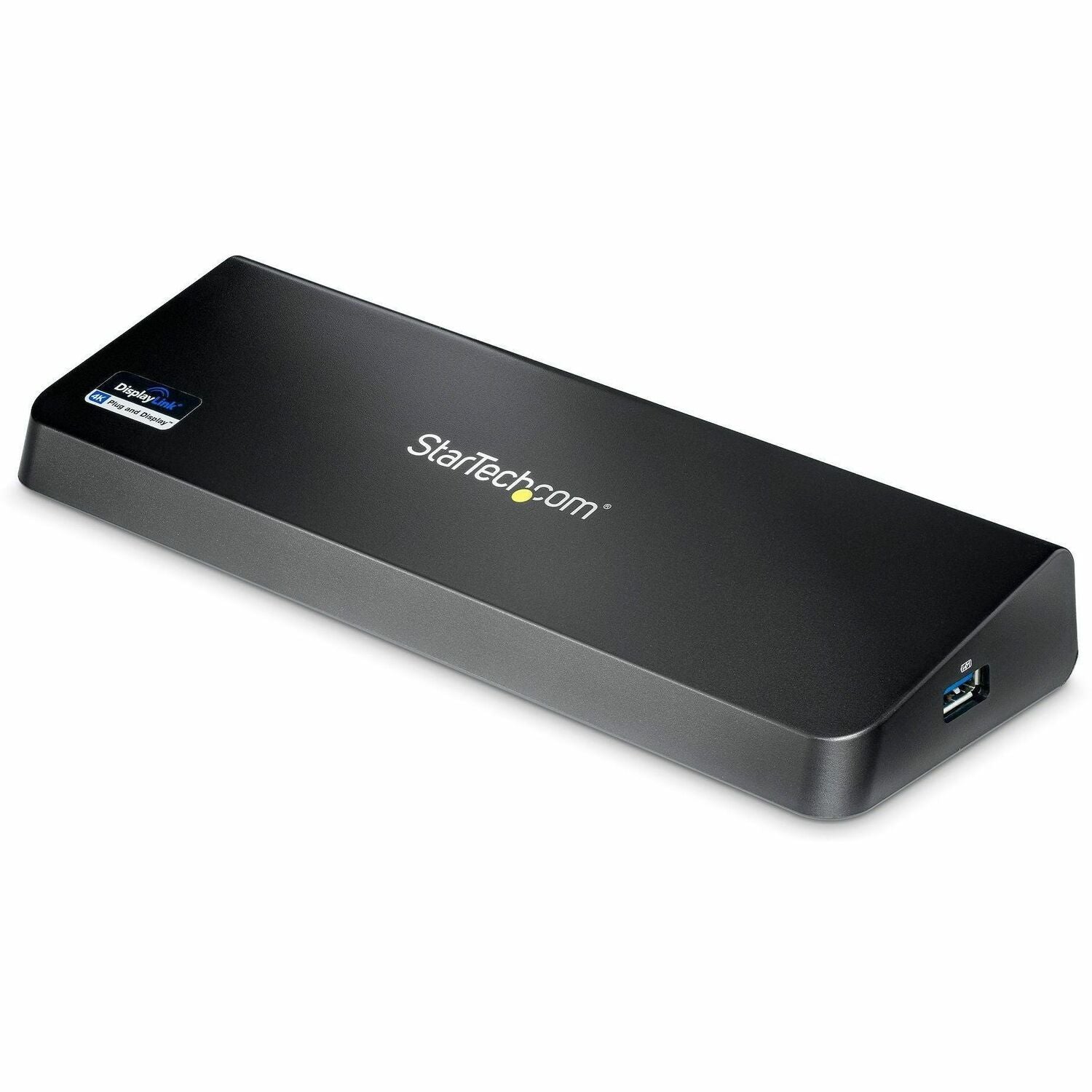

USB3DOCKHDPC StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - 4x USB-A, Ethernet - USB Type A Universal Laptop Dock

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: USB3DOCKHDPC
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 4K Docking Station for Laptops - DP and HDMI - USB 3.0
Marketing Information:

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration Max DisplayPort Resolution Max HDMI Resolution

DisplayPort (Single Display)

3840 x 2160p (4K) N/A HDMI (Single Display) N/A 2560 x 1440p DisplayPort and HDMI (Two Displays) 2048 x 1152p 2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected dire
Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired

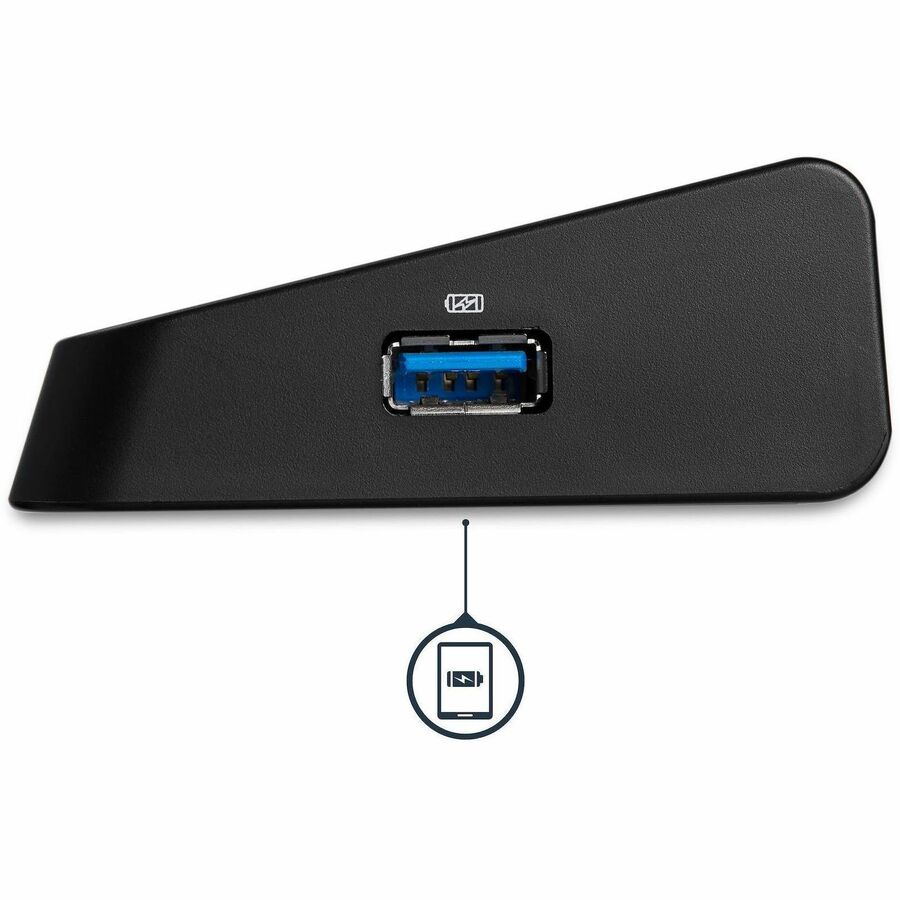

Charging Capability: Yes
Number of Displays Supported: 2
Supported Resolutions: 3840 x 2160,2560 x 1440,2048 x 1152
Device Supported: Notebook

Network & Communication

Ethernet Technology: Gigabit Ethernet

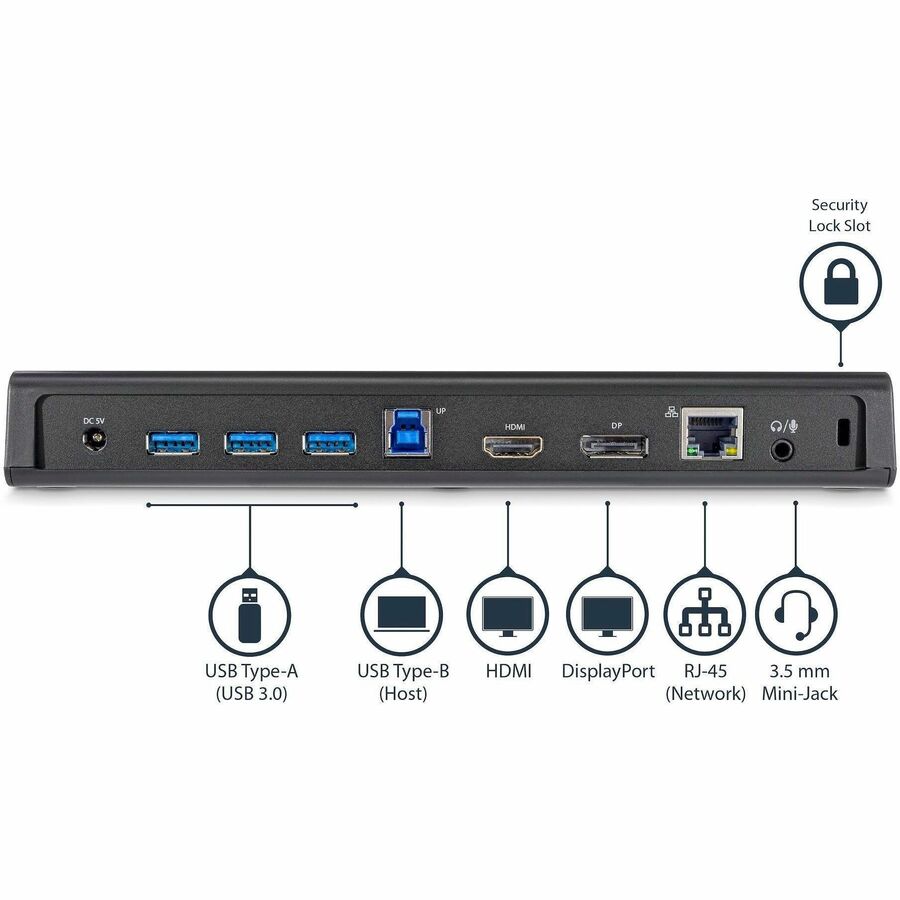

Interfaces/Ports

Host Interface: USB 3.0
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
USB Type-A: Yes
Network (RJ-45): Yes
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Microphone: Yes
HDMI: Yes

Software

Operating System Supported: macOS 14,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X Server 10.8 Mountain Lion,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,ChromeOS 55+

Physical Characteristics

Product Color: Black

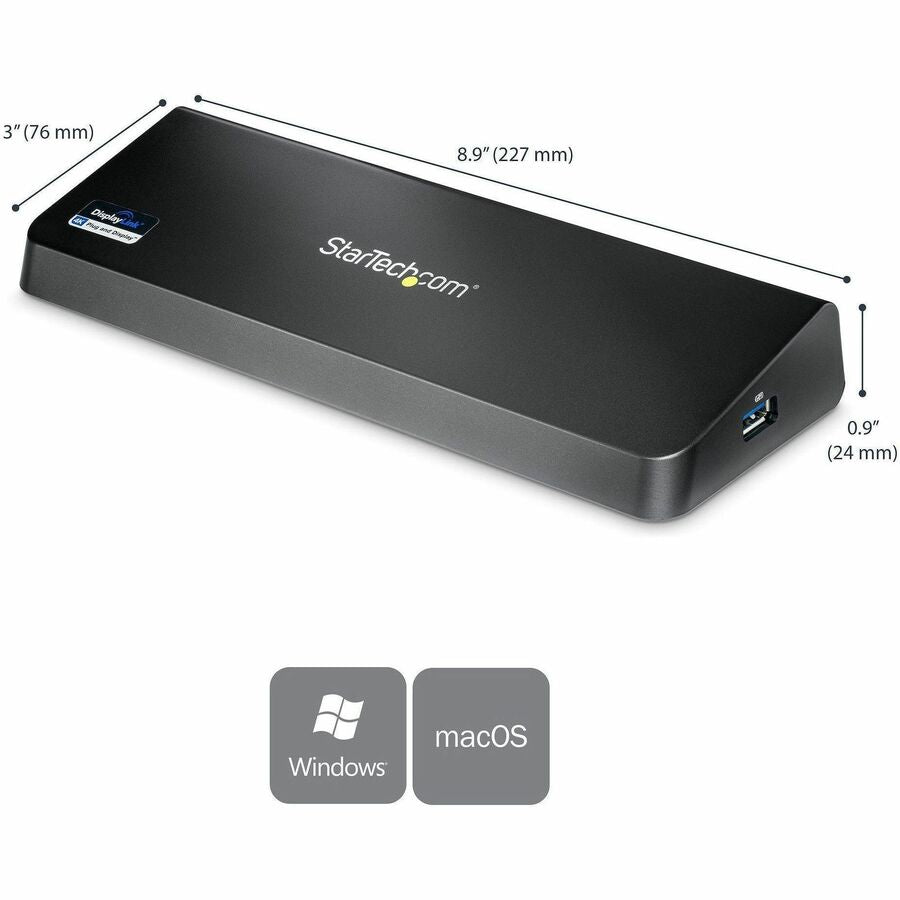

Height: 0.90" (22.86 mm)
Width: 3" (76.20 mm)
Weight (Approximate): 9.80 oz (277.83 g)

Miscellaneous

Kensington Security Slot: Yes
Compatibility:

• Apple Mac Laptops

Microsoft Products:

• Surface Pro 4
• Surface Pro 3
• Surface 3
• Surface Pro 2
• Surface Book

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
