StarTech.com Dual Monitor USB 3.0 Laptop Docking Station, HDMI & DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal USB-A Dock, Win/Mac, TAA

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: USB3SDOCKHDV
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Dual-Monitor USB 3.0 Docking Station with HDMI &DVI/VGA
Marketing Information:

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

• HDMI + VGA
• HDMI + DVI

Integrated USB Hub

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 2
Supported Resolutions: 1920 x 1200,1920 x 1080,2048 x 1152
Screen Mode Supported: HD
Device Supported: Notebook

Network & Communication

Ethernet Technology: Gigabit Ethernet

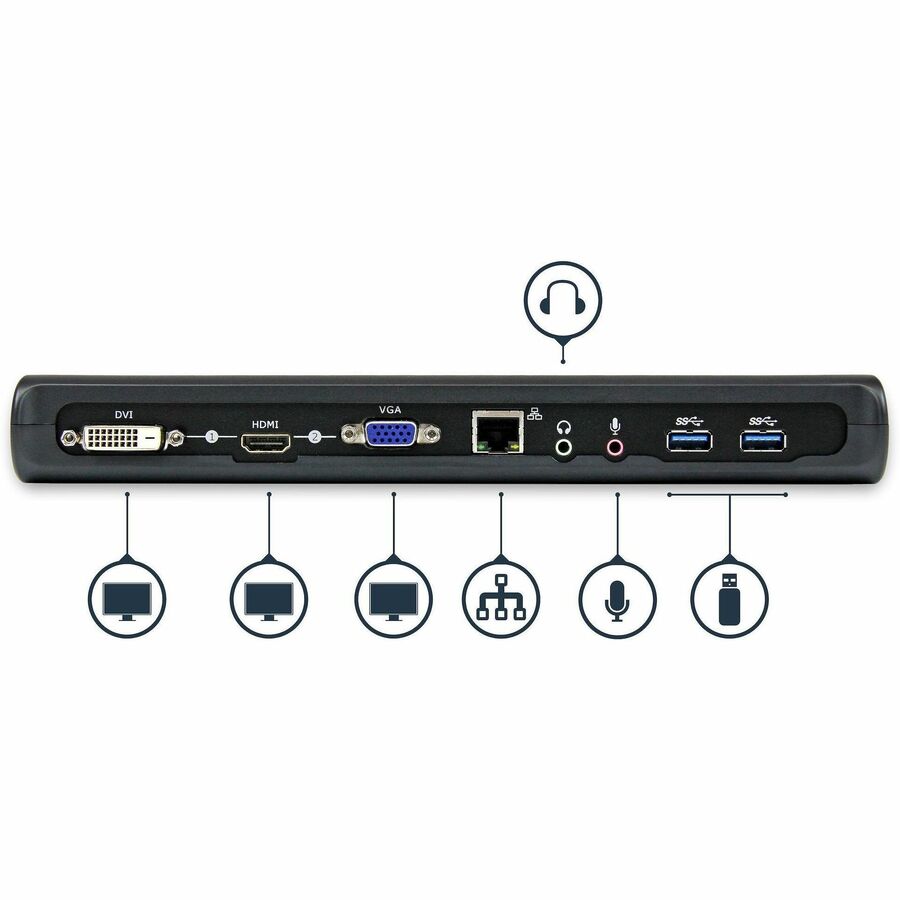

Interfaces/Ports

Host Interface: USB 3.0
Audio Line Out: Yes
Total Number of USB Ports: 4
Number of USB Type-A Ports: 3
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
VGA: Yes
Headphone/Microphone Combo Port: Yes
Microphone: Yes
Number of HDMI Outputs: 1
HDMI: Yes
DVI: Yes

Software

Operating System Supported: macOS 14,Windows XP SP3,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.6 Snow Leopard,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,ChromeOS 69+

Physical Characteristics

Product Color: Black
Height: 1.73" (44 mm)
Width: 7.01" (178 mm)
Weight (Approximate): 10.41 oz (295 g)

Miscellaneous

Compatibility:

Compatible with Windows, macOS, & ChromeOS, enabling extended dual displays
on laptops, Chromebooks and MacBooks that feature a USB-A host connection such as X1 Carbon, ThinkPad, Latitude, Precision, XPS 15, Spectre, and ZBook

Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
