Description
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: VIDWALLMNT
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Video Wall Mount - Pop-Out Design - Micro-Adjustment
Marketing Information:

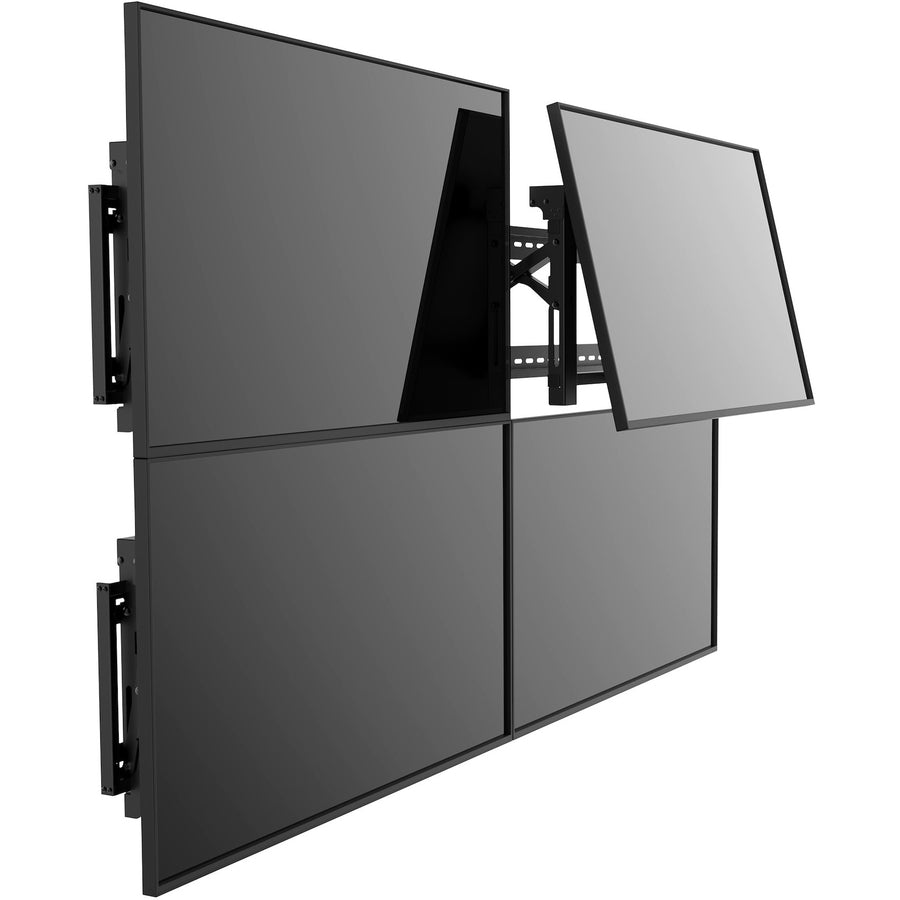

This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.
A Versatile Video Wall Mounting System

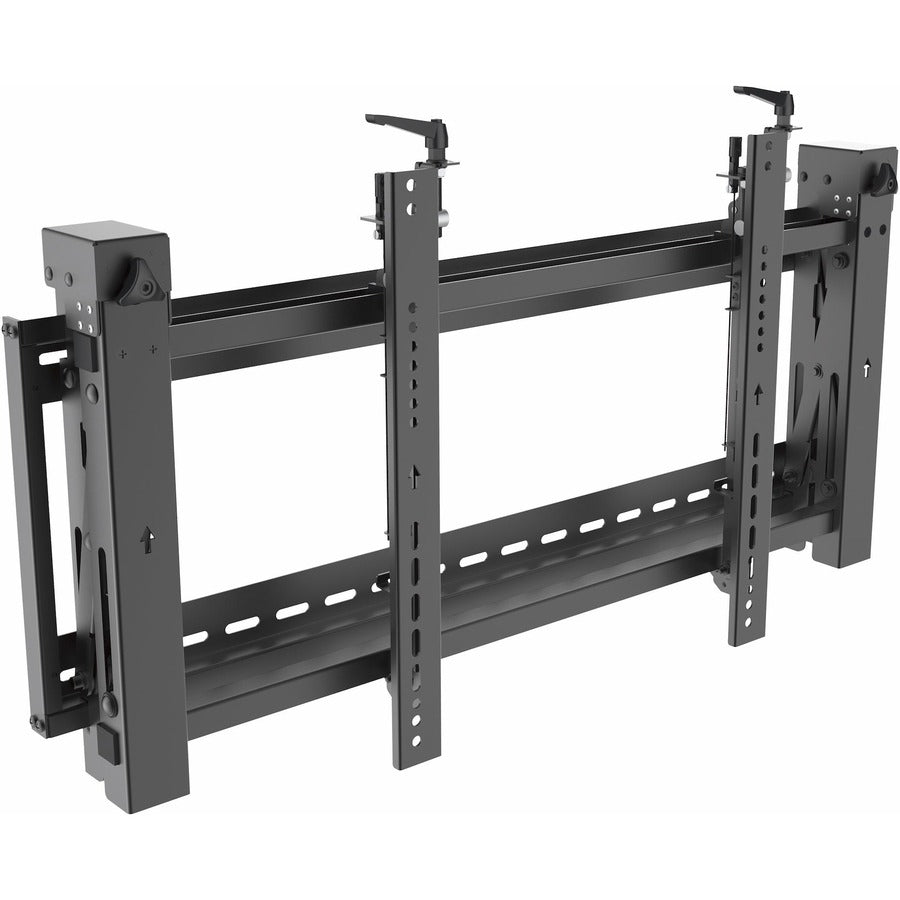

Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).

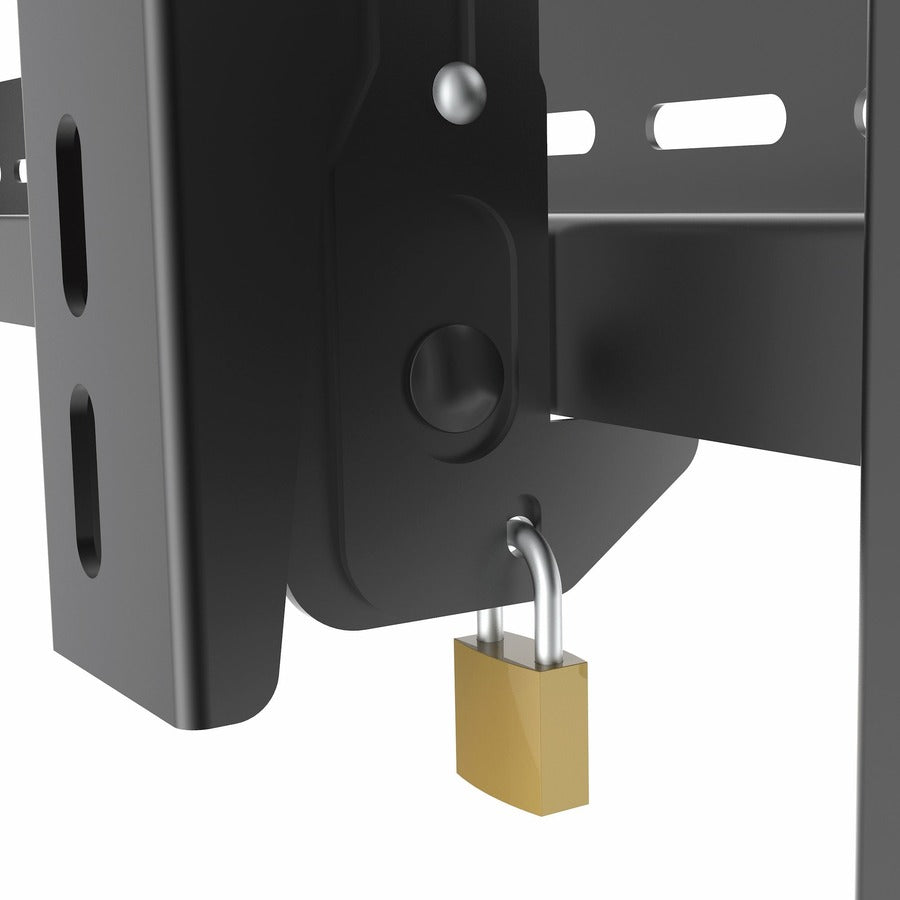

Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It's the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).
Align Your Displays Seamlessly

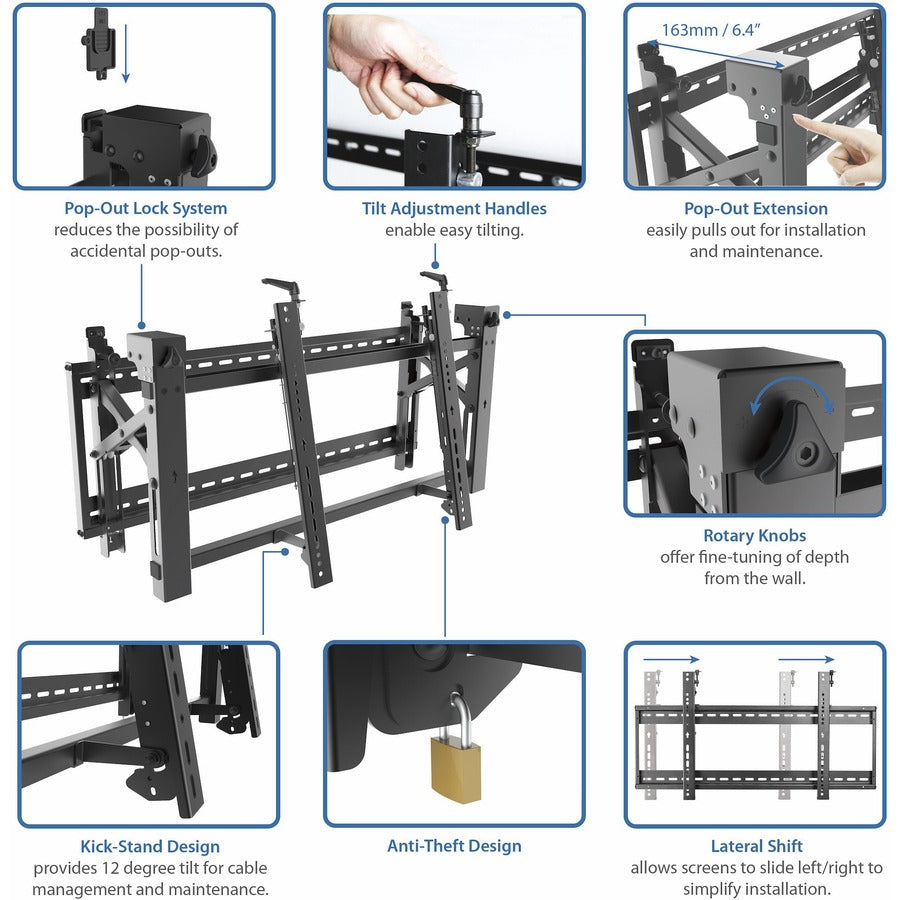

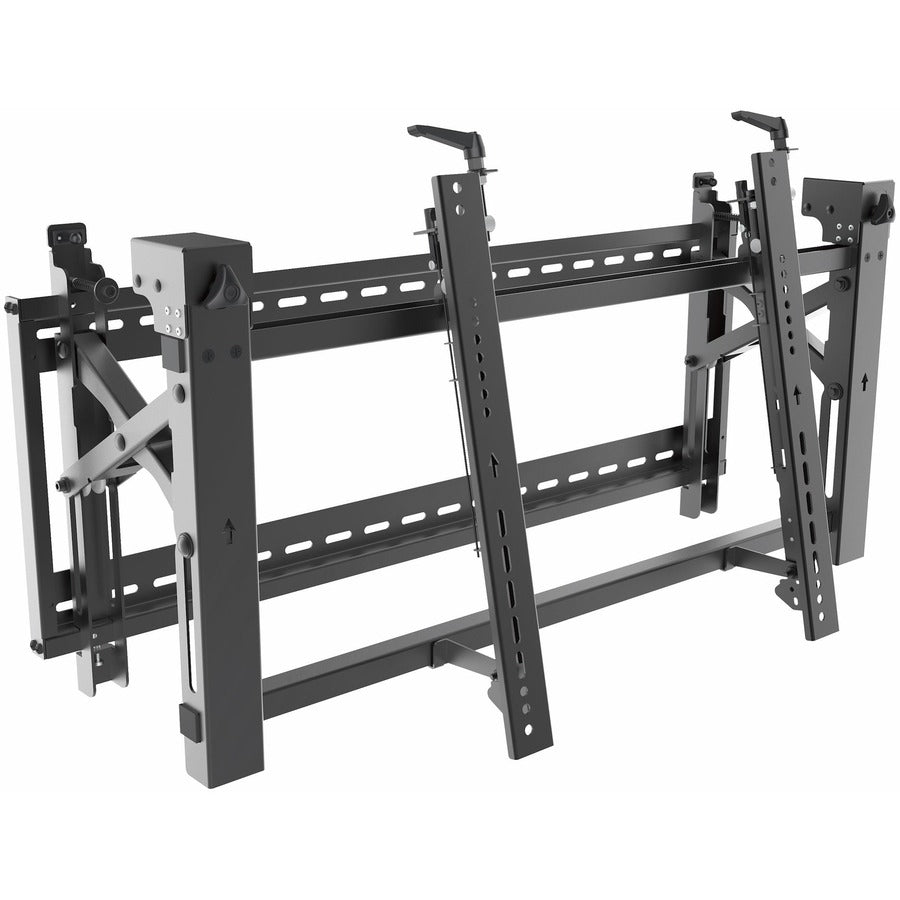

With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when re
Packaged Quantity: 1 Each
Product Type: Wall Mount
Product Information
Device Supported: Video Wall,LCD Display,LED DisplayNumber of Displays Supported: 1
Maximum Load Capacity: 154.70 lb (70170.74 g)
Maximum Screen Size Supported: 70"
Features: Adjustable,Heavy Duty,Anti-theft,Tilt,Swivel
Physical Characteristics
Color Family: BlackProduct Color: Black
Product Material: Steel,Aluminum
Mounting Pattern: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,200 x 300,200 x 400,300 x 200,600 x 200,600 x 300
Height: 19" (482.60 mm)
Width: 12" (304.80 mm)
Depth: 36.80" (934.72 mm)
Weight (Approximate): 34.70 lb (15739.66 g)
Miscellaneous
Package Contents:- 1 x Wall Plate
- 1 x Adjustment Module
- 2 x Adapter Brackets
- 2 x Stoppers
- 2 x Plastic Tabs
- 1 x Hex Key
- 4 x M5x14 mm Screws
- 4 x M6x14 mm Screws
- 4 x M8x20 mm Screws
- 4 x M6x30 mm Screws
- 4 x M8x30 mm Screws
- 4 x Rectangular Washers
- 8 x Small Spacers
- 4 x Large Spacers
- 6 x 6.3x55 mm Screws
- 6 x Concrete Anchors
- 6 x Washers
- 1 x Instruction Manual
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty: 5 Year
