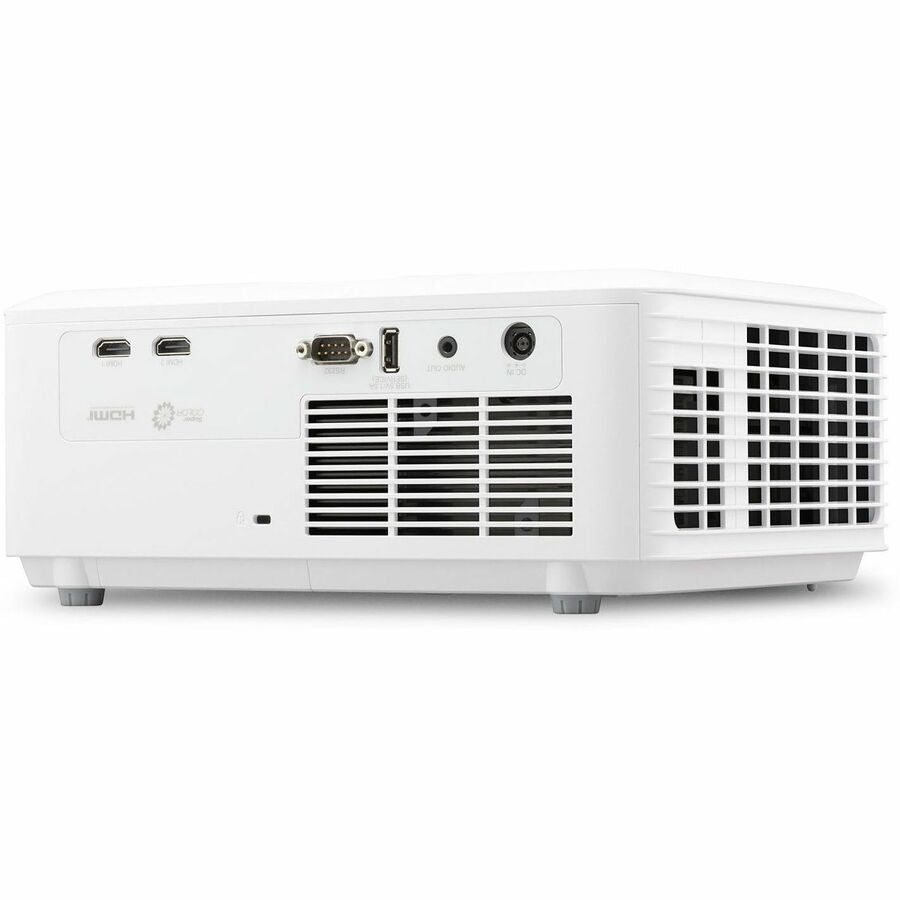

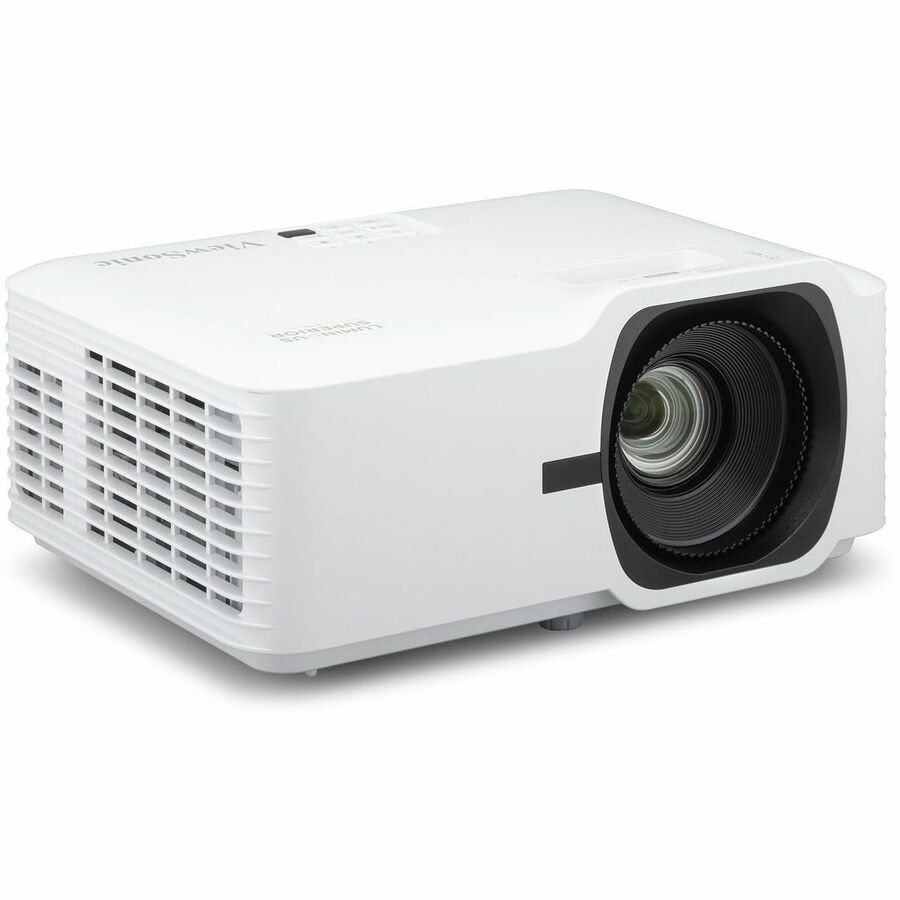

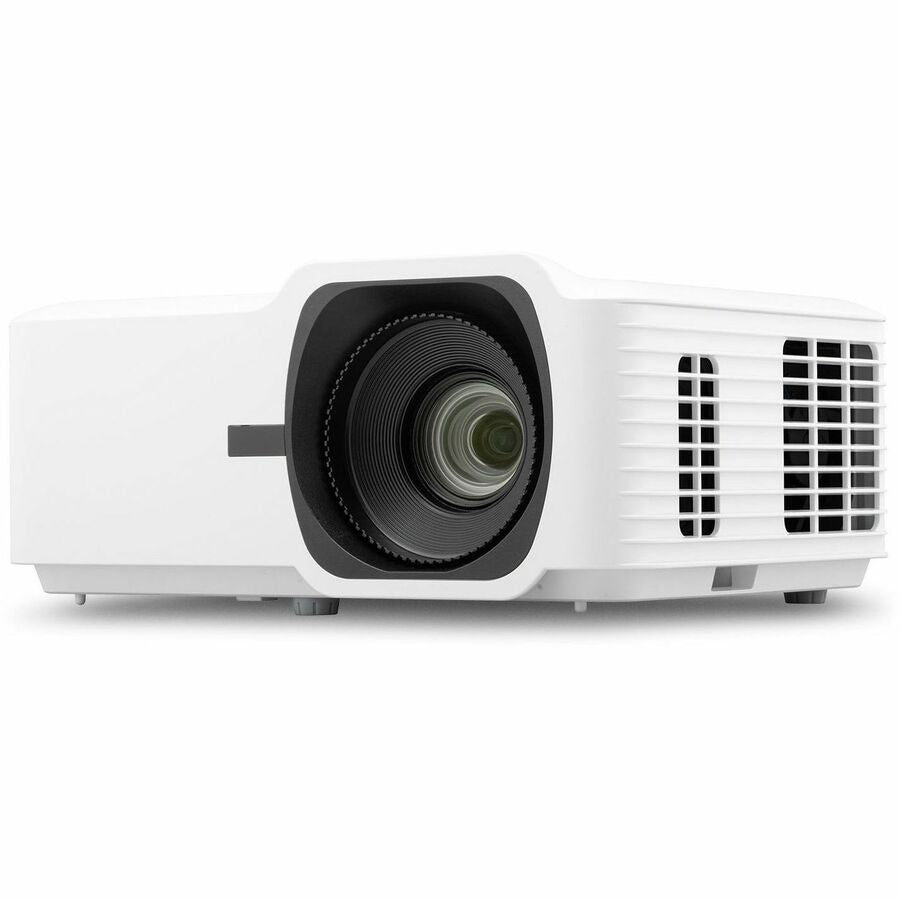

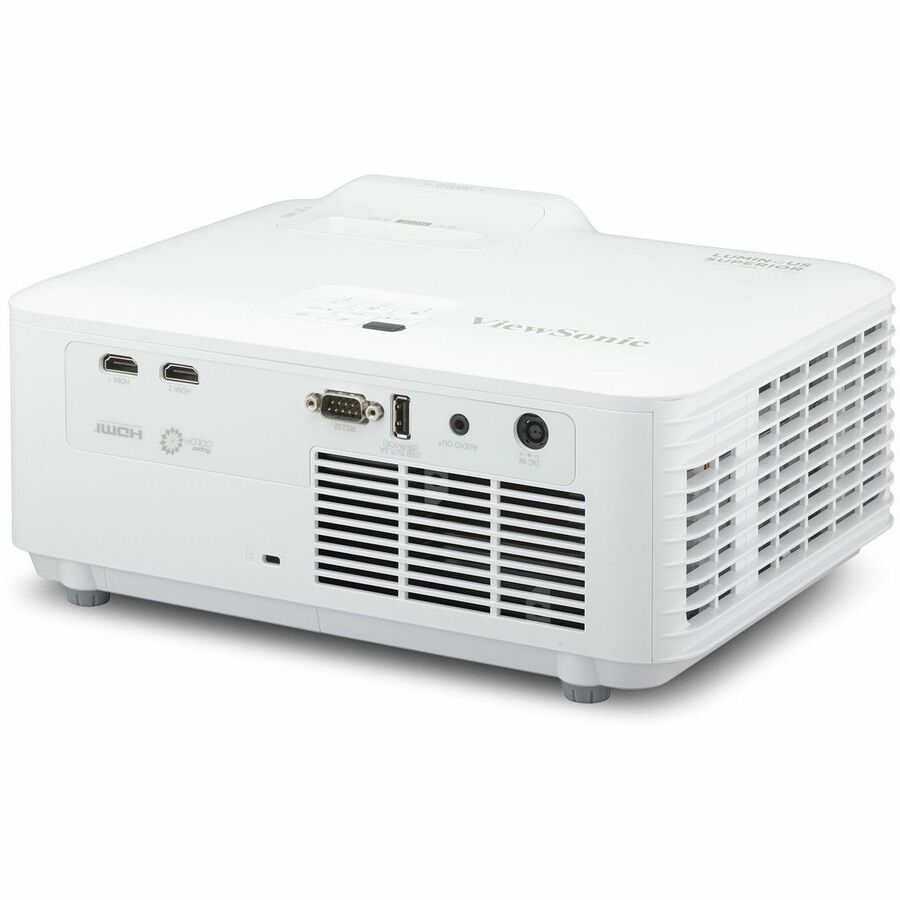

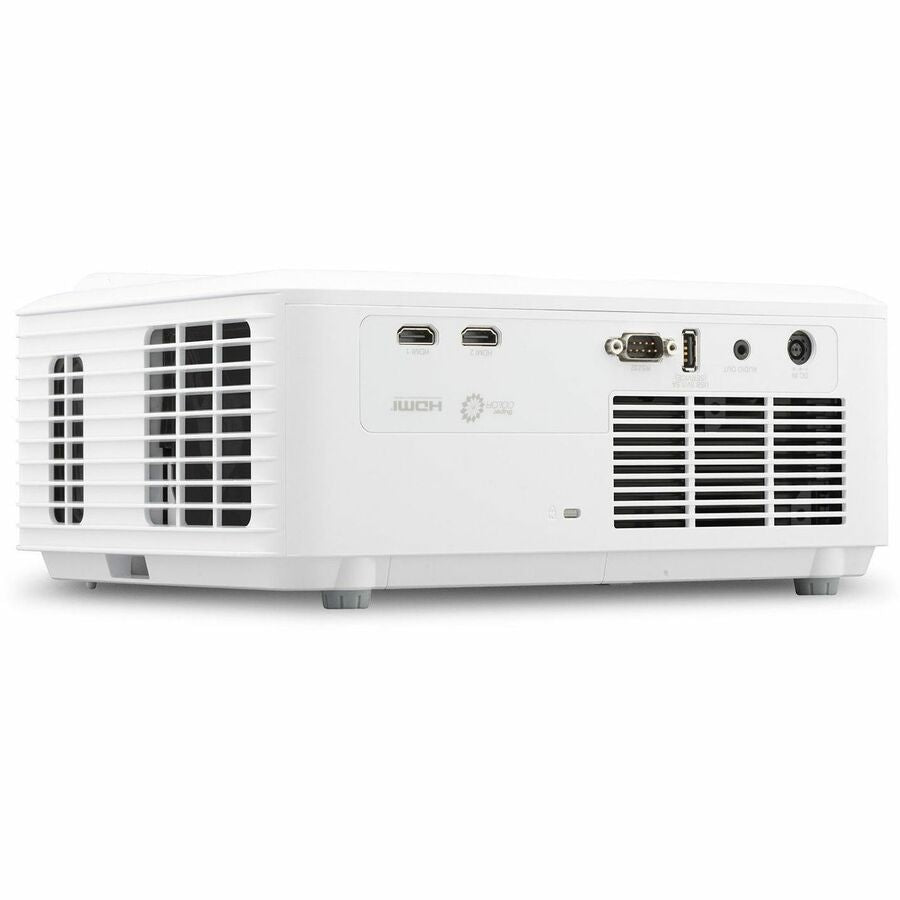

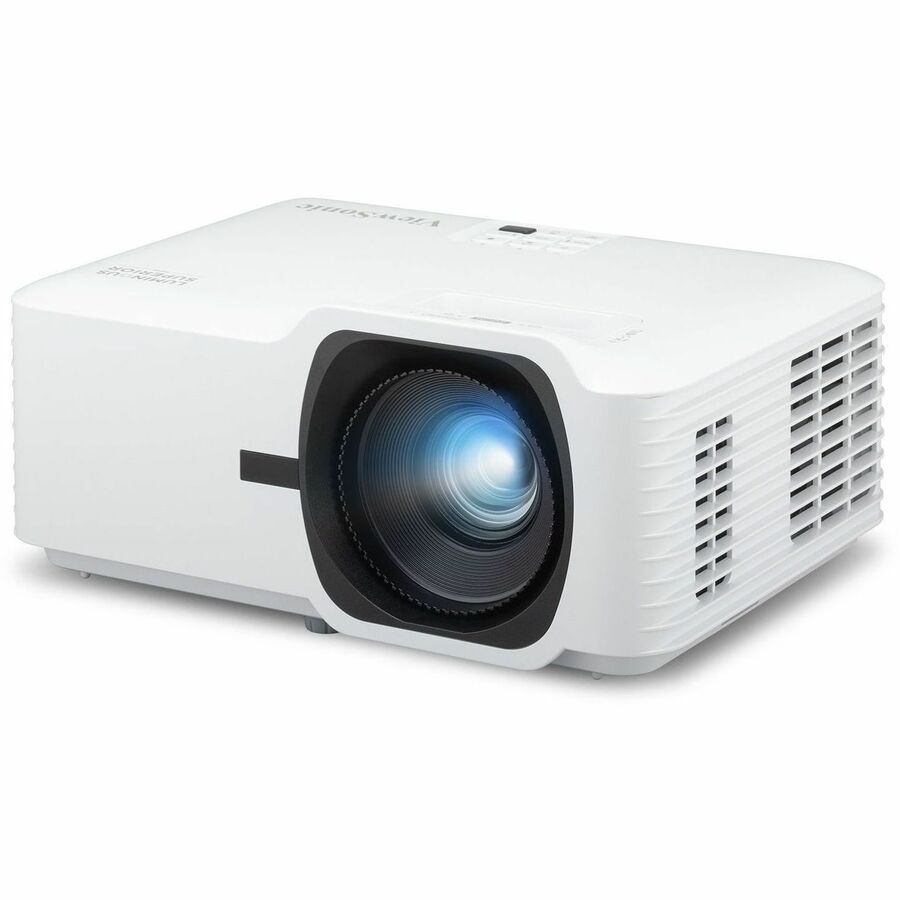

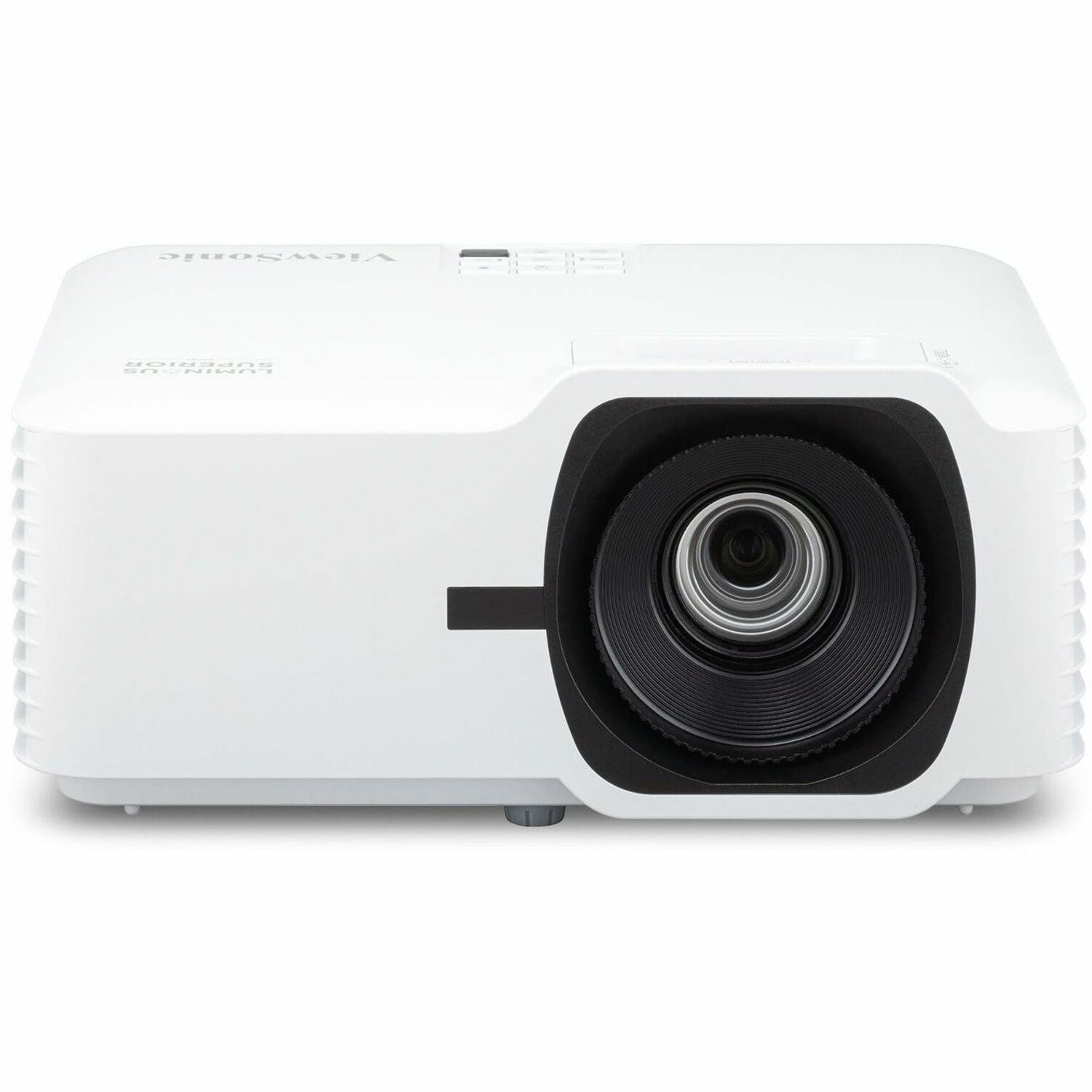

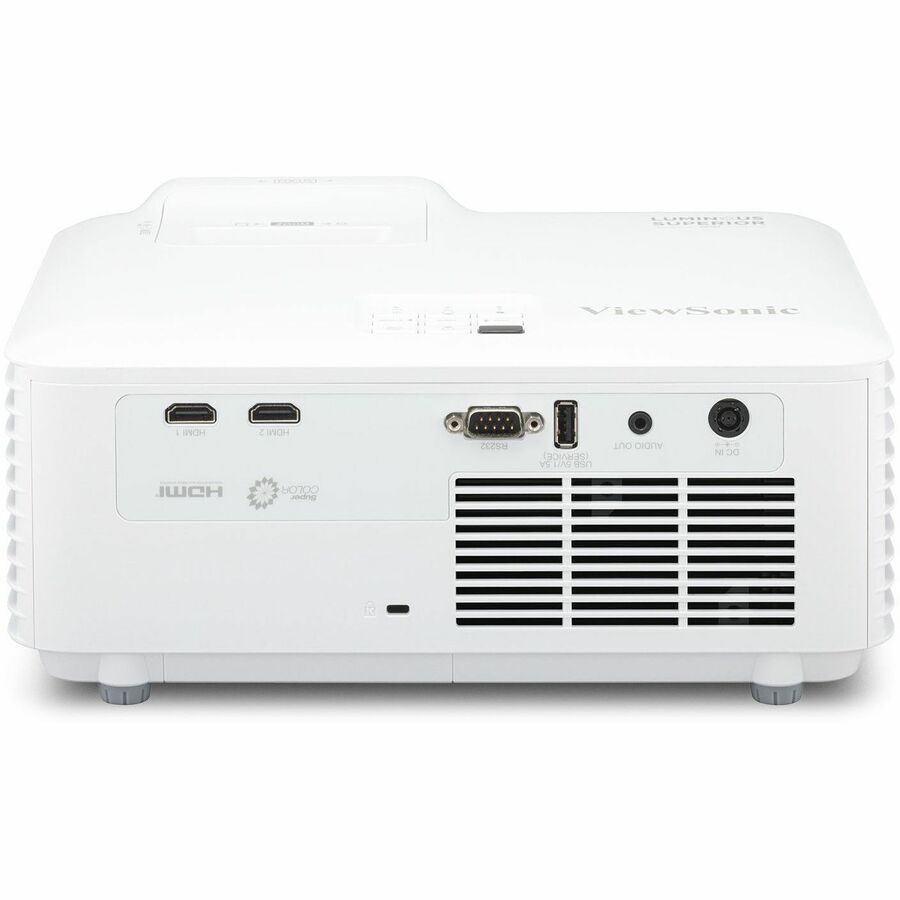

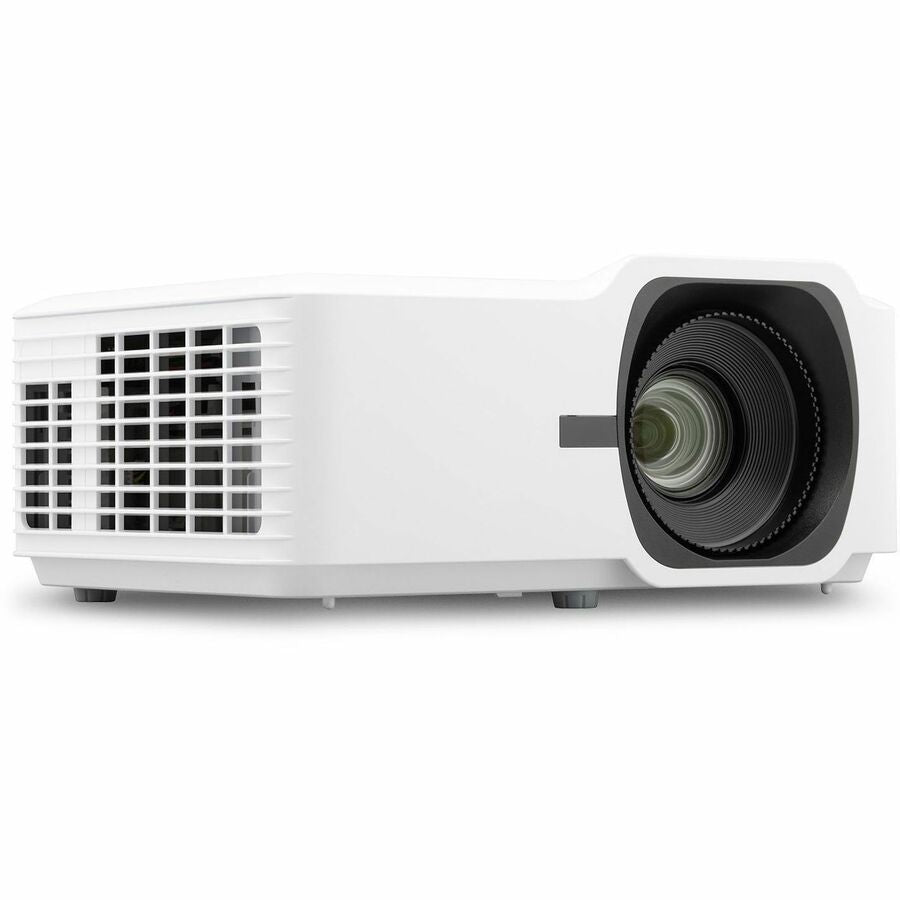

LS740HD ViewSonic LS740HD DLP Projector - 16:9 - Wall Mountable, Ceiling Mountable, Floor Mountable - White

General Information

Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LS740HD
Manufacturer Website Address: http://www.viewsonic.com
Brand Name: ViewSonic
Product Series: LS
Product Model: LS740HD
Product Name: LS740HD 5,000 ANSI Lumens 1080p Laser Installation Projector
Marketing Information:

The LS740HD belongs to ViewSonic's Luminous Superior series, a lamp-free high-brightness projector line up designed for commercial and educational spaces. With its adoption of the 3rd generation laser phosphor technology, it delivers 5,000 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector's light weight and compact design reduces transportation costs. With up to 300" projection in 1080p Full HD with high native contrast, it is well-suited for boardrooms, lecture halls, and public spaces. This projector features a1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait modefor easy setup and versatile applications.

Bright, Compact, Durable

The LS740HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more acce
Product Type: DLP Projector

Technical Information

Projection Method: Front,Ceiling

Display & Graphics

Native Resolution: 1920 x 1080
Graphic Mode: Full HD
Native Aspect Ratio: 16:9

Projection Lens

Minimum Focal Length: 16.9 mm (0.67")
Maximum Focal Length: 21.6 mm (0.85")
Maximum Diagonal Image Size: 25 ft (7620 mm)
Optical Zoom: 1.3x
Minimum Projection Distance: 39.37" (1000 mm)
Maximum Projection Distance: 26.25 ft (8000 mm)

Lamp

Number of Lamps: 1
Lamp Type: Laser/Phosphor
Normal Mode Lamp Life: 20000 Hour
Economy Mode Lamp Life: 30000 Hour


Standard Mode Brightness: 5000 lm
Contrast Ratio: 3,000,000:1

Video

Video Signal Standard: HDTV
Output Scan Format: 1080p

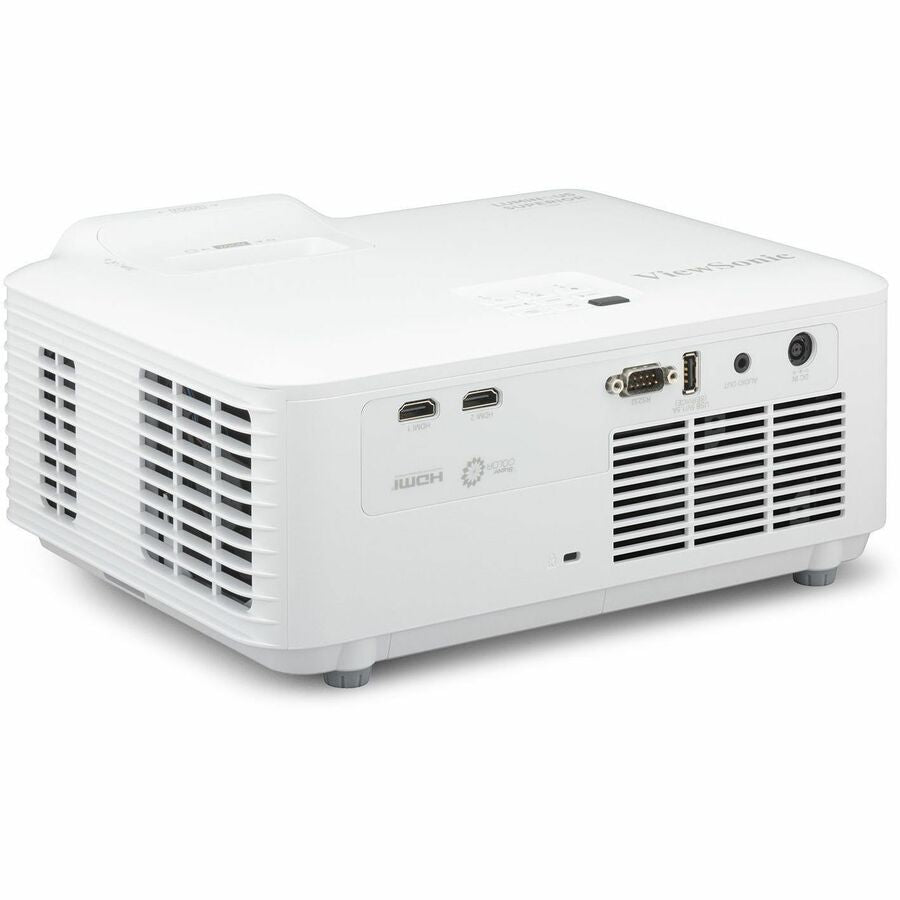

Interfaces/Ports

HDMI: Yes
USB: Yes

Power Description

Operating Power Consumption: 210 W

Physical Characteristics

Product Color: White
Form Factor: Wall Mountable,Ceiling Mountable,Floor Mountable
Height: 5.08" (129 mm)
Width: 11.26" (286 mm)
Depth: 8.50" (216 mm)
Weight (Approximate): 6.61 lb (3000 g)

Miscellaneous

Application/Usage: Board Room,Lecture Hall,Auditorium,Presentation,Museum,Education
Package Contents:

LS740HD 5,000 ANSI Lumens 1080p Laser Installation Projector

Power Cable

Remote control

Quick Start Guide

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

1 Year limited lamp warranty. Lamp warranty is subject to ViewSonic standard limited warranty terms and conditions, verification and approval. All accessory lamps purchased separately are warranted for 90 days.
