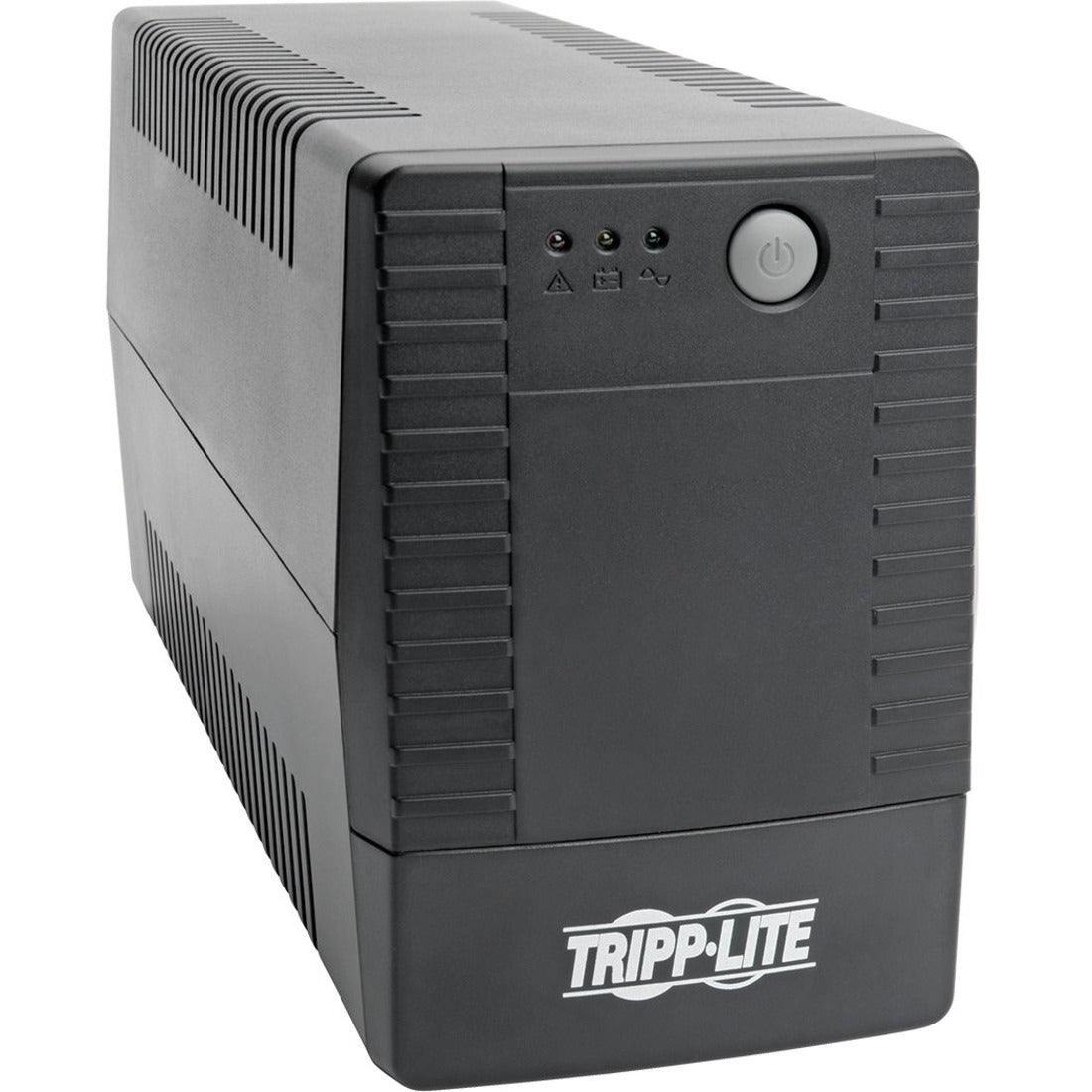

VS900T Tripp Lite series VS900T 900VA Desktop/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: VS900T
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Series: VS
Product Model: VS900T
Product Name: VS900T 900VA Desktop/Tower UPS
Marketing Information:

900VA/480W/120V Battery Backup for PCs, Home Theater or Digital Signage

This 120V UPS with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 44 minutes. During normal operation, incoming utility power keeps the replaceab
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
AVR Range: Boost +18% / Buck -15%

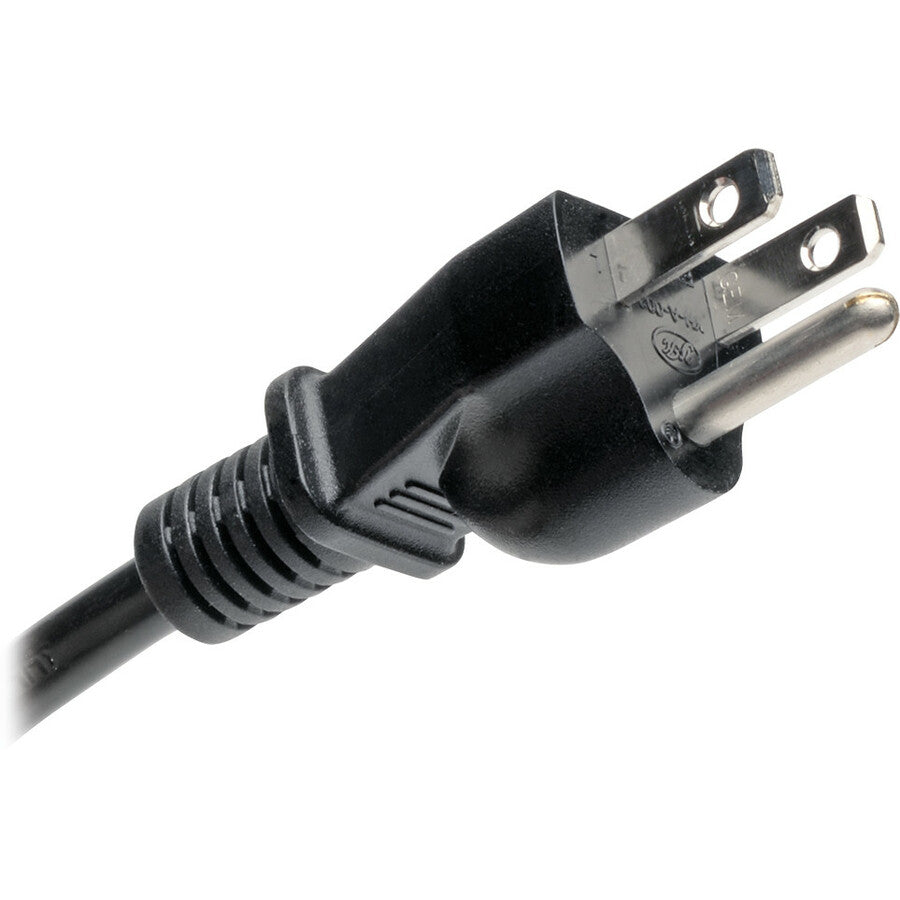

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Office,Computer,Home Theater,Router,Printer,ATM,Blu-ray Player,Security System,DVR,Gaming Console,Digital Signage

Power Description

Load Capacity (VA): 900 VA
Load Capacity (Watt): 480 W
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 316 J

Management

Alarm: Low Battery,Fault,Overload,Replace Battery

Controls/Indicators

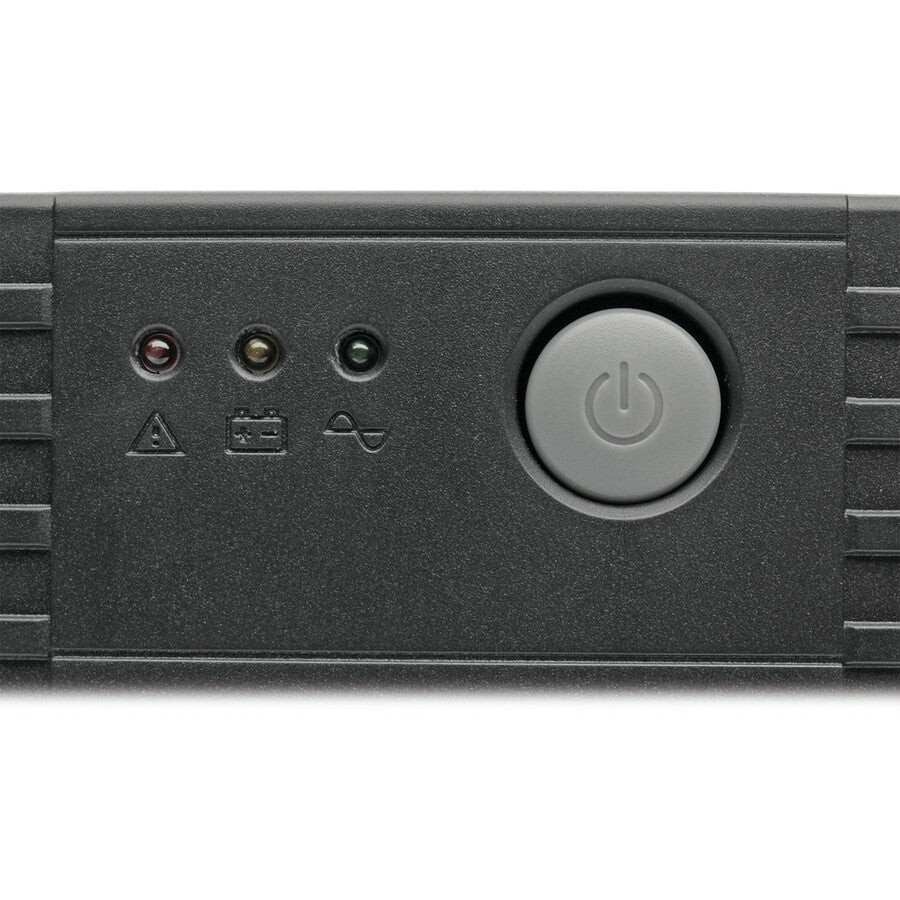

Status Indicators:

3 LEDs indicate online mode (green), battery mode (yellow) and fault mode (red)

Battery Information

DC System Voltage: 12 V DC
Backup/Run Time (Half Load): 3.80 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity: 0% - 90%
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 66 BTU/h

Physical Characteristics

Height: 5.59" (142 mm)
Width: 4.02" (102 mm)
Depth: 11.81" (300 mm)
Form Factor: Desktop/Tower
Weight (Approximate): 12.61 lb (5720 g)

Miscellaneous

Package Contents:

• VS900T 900VA Desktop/Tower UPS
• Owner's Manual

Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
