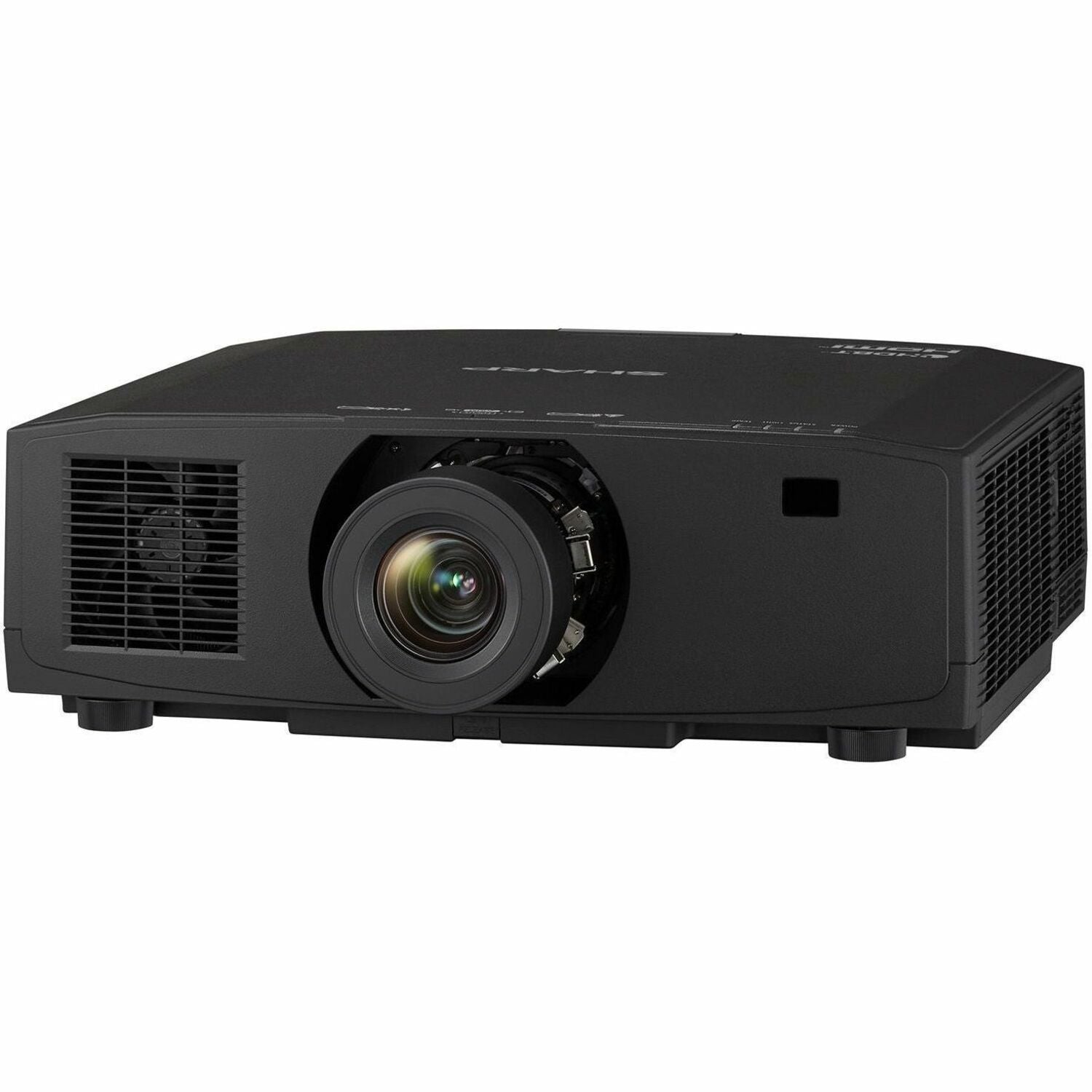

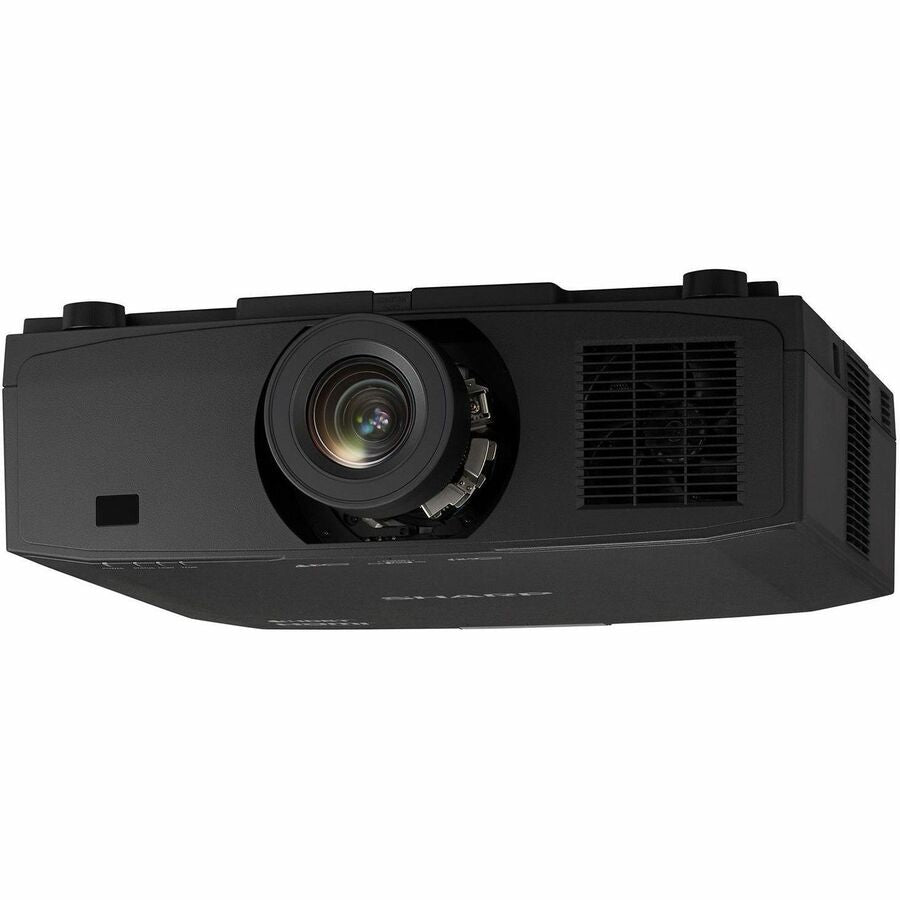

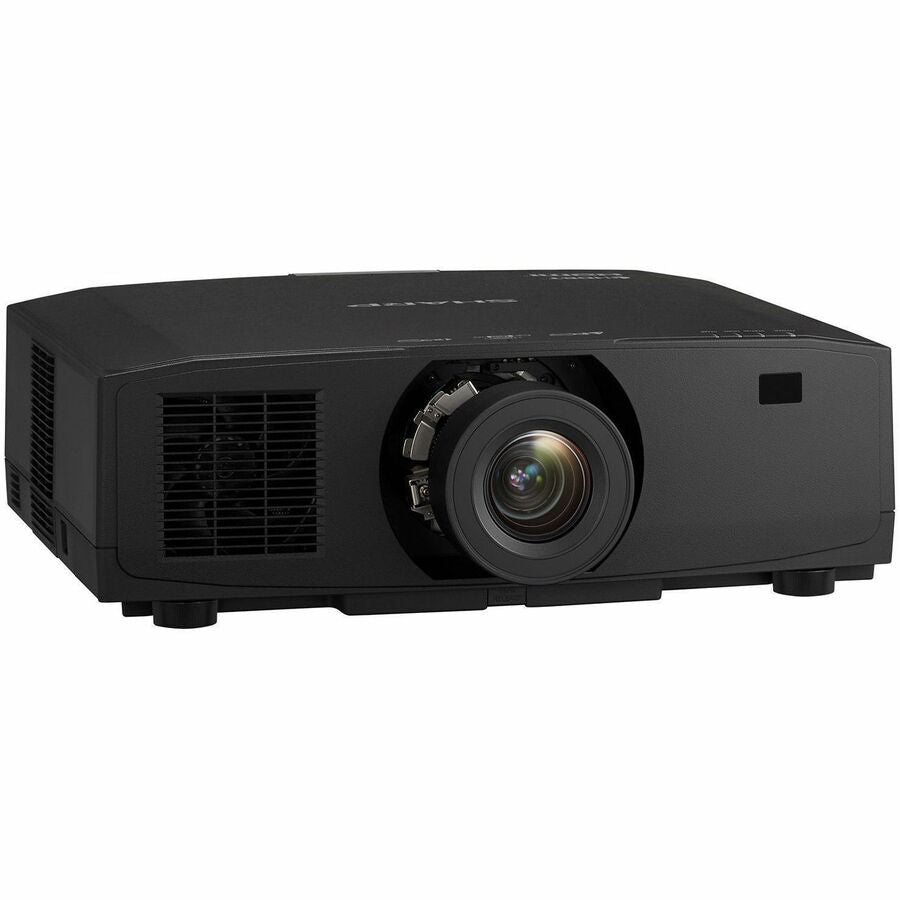

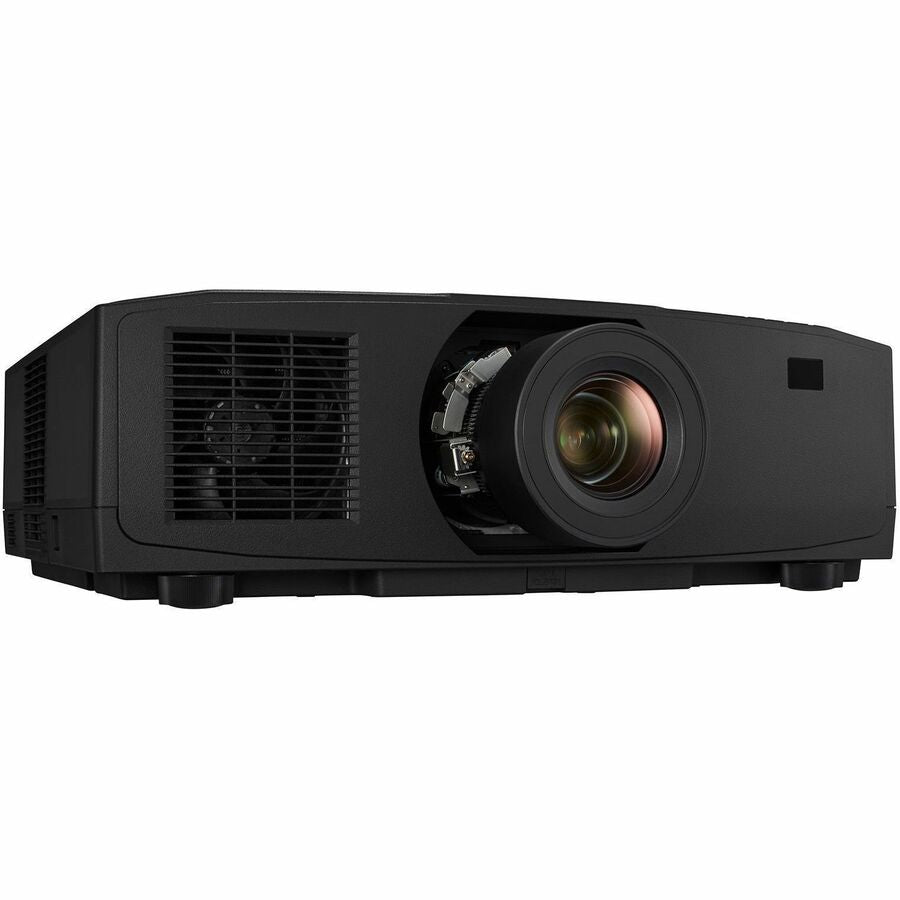

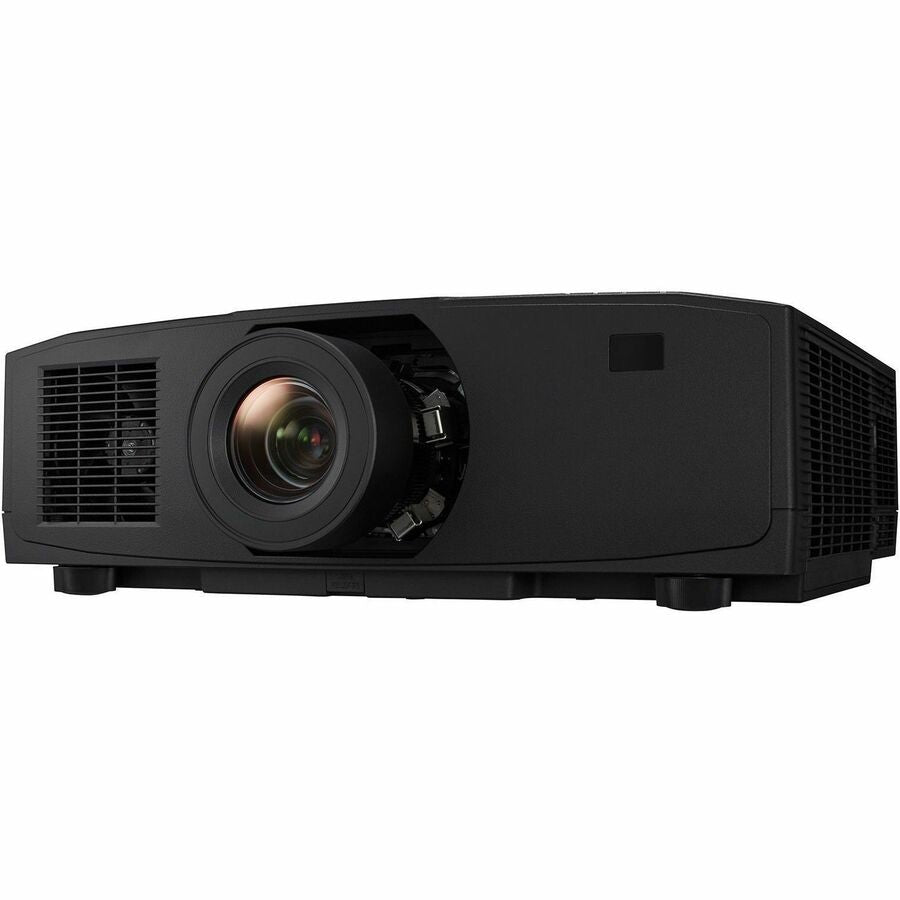

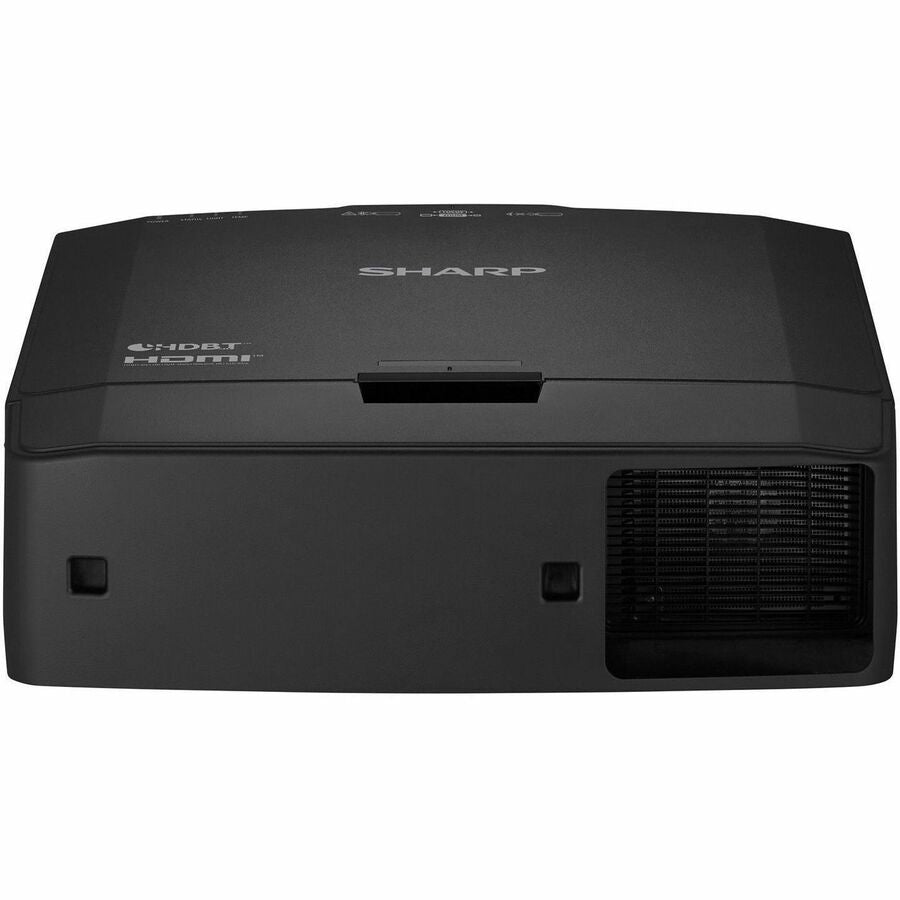

XP-V801U-B Sharp Professional V801U 3D Standard Throw 3LCD Projector - 16:10 - Ceiling Mountable - Black

General Information

Manufacturer: Sharp Electronics
Manufacturer Part Number: XP-V801U-B
Manufacturer Website Address: http://sharp.ca/en/
Brand Name: Sharp
Product Line: Professional
Product Series: V
Product Model: V801U
Product Name: V801U Professional Value LCD Laser Installation Projector
Marketing Information:

Versatile, Value-driven Performance

A highly economical projection solution, the Sharp V Series combines installation flexibility, low maintenance, and long-life laser performance in a compact, cost-efficient design. Using 3LCD technology, it delivers vivid colour and precise white point calibration with 12-bit colour processing for rich saturation and contrast making it suited for education, corporate, leisure, and simulation environments.

Compatible with existing mounts and lenses, the V Series provides a seamless upgrade path from lamp-based or earlier laser models, maximising assets and reducing costs while embracing nextgeneration efficiencies.

Sharp's ProAssist software enables easy remote setup and adjustment, while advanced features such as geometric correction, edge blending, and wide lens shift support flexible, precise integration.

Benefits

No lamp replacement - up to 20,000 h maintenance free operation possible due to Laser Light Source.

<
Product Type: 3LCD Projector

Technical Information

Projection Method: Ceiling,Front
3D Type: 3D

Display & Graphics

Native Resolution: 1920 x 1200
Graphic Mode: WUXGA
Native Aspect Ratio: 16:10

Projection Lens

Throw Type: Standard Throw
Minimum Diagonal Image Size: 40" (1016 mm)
Maximum Diagonal Image Size: 41.67 ft (12700 mm)
Minimum Projection Distance: 27.56" (700 mm)
Maximum Projection Distance: 166.99 ft (50900 mm)

Lamp

Number of Lamps: 1
Lamp Type: Laser
Normal Mode Lamp Life: 20000 Hour


Standard Mode Brightness: 8300 lm
Contrast Ratio: 3,000,000:1

Video

Video Signal Standard: HDTV
Output Scan Format: 2160p

Interfaces/Ports

HDMI: Yes
USB: Yes
Network (RJ-45): Yes

Power Description

Operating Power Consumption: 467 W
Standby Power Consumption: 500 mW

Physical Characteristics

Product Color: Black
Form Factor: Ceiling Mountable
Height: 6.46" (164 mm)
Width: 19.65" (499 mm)
Depth: 16.02" (407 mm)
Weight (Approximate): 24.69 lb (11200 g)

Miscellaneous

Application/Usage: Education,Corporate,Simulator,Meeting
Environmental Certification: T�V Rheinland Green Product
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
