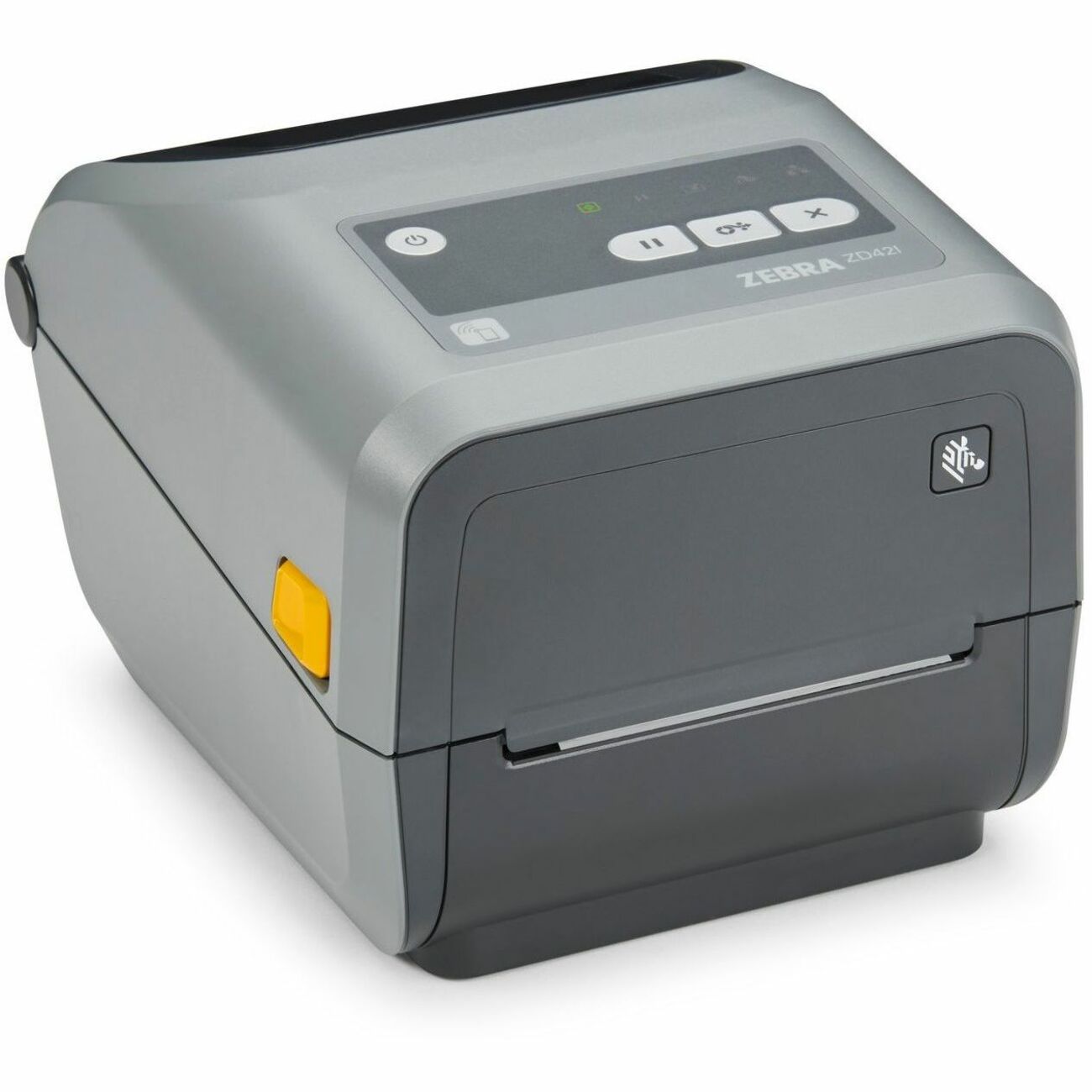

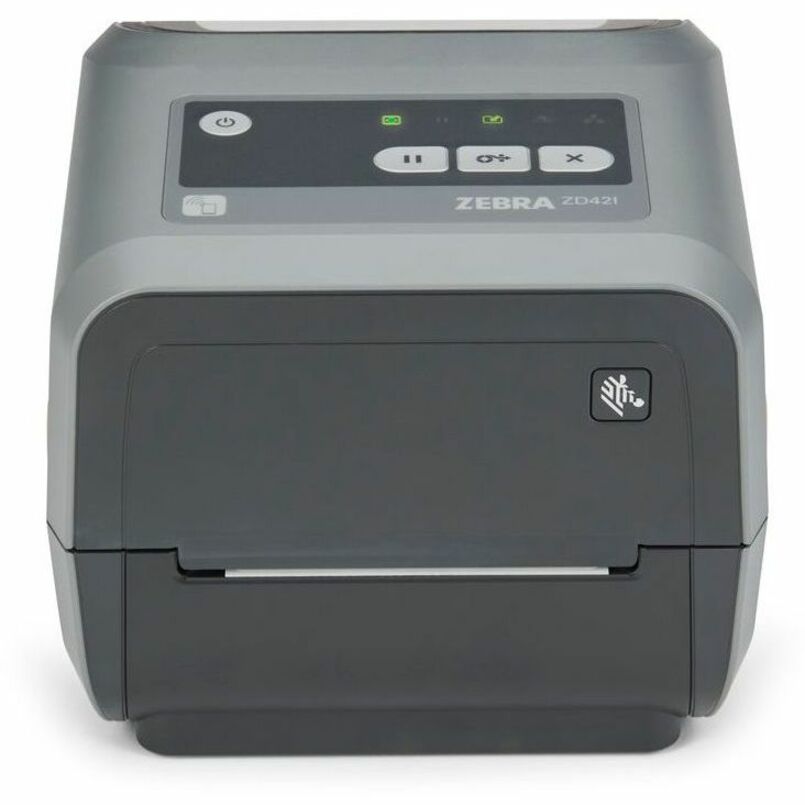

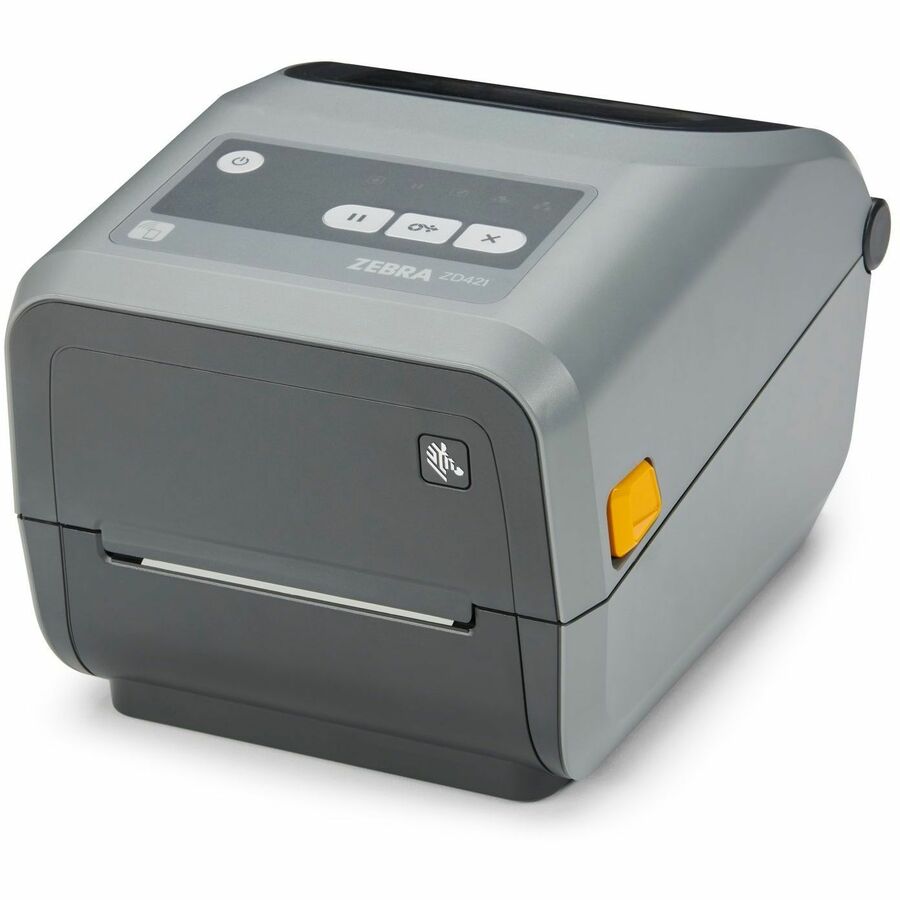

ZD4A042-C01E00EZ Zebra ZD421 Desktop, Retail, Healthcare, Transportation & Logistic, Manufacturing Thermal Transfer Printer - Monochrome - Label/Receipt Print - Fast Ethernet - USB - USB Host - Bluetooth - Near Field Communication (NFC)

General Information

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD4A042C01E00EZ
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: GK
Product Model: ZD421
Product Name: ZD421 4-inch Desktop Printer
Marketing Information:

Elevate your expectations: the advanced desktop printer that delivers the features, flexibility, reliability and security you need You need

a reliable printer that delivers quality performance, now and for years to come. It needs to offer key features, and be easy to setup, operate, manage and maintain - onsite or remotely. It needs to be secure, whether it is integrated onto your network or not, to prevent downtime and costly cyberattacks. You need it. Zebra delivers it, for more than 50 years. We design our printers to match your workflows, ensuring they are hassle-free and ready to work. Day in and day out. We're always innovating to deliver the best to help you advance your business and be ready for what's next. Building on the legacy of Zebra's popular GK Series, ZD421 printers add even more capabilities and security measures to set you up for years of use.

It's Time to Advance | Migrate from G to Z

The ZD421 builds on the legacy of Zebra's GK Series printers, offering
Product Type: Thermal Transfer Printer

Technical Information

Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 5.98 in/s (152 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Width: 4.09" (104 mm)
Barcode Symbology Supported: 1D,Code 11,Code 39,Code 93,Code 128,ISBT-128,UPC-A,UPC-E,EAN-8,EAN-13,UPC,EAN With 2 or 5 Digit Extension,Plessey,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Codabar,Planet Code,2D,Codablock,PDF417,Code 49,Data Matrix,Maxi Code,QR Code,Micro PDF,AZTEC
Connectivity Technology: Wired
Real Time Clock: Yes
Application/Usage: Desktop,Retail,Healthcare,Transportation & Logistic,Manufacturing
Features: Dual Wall Frame

Memory

Standard Memory: 256 MB
Flash Memory: 512 MB

Interfaces/Ports

USB Host: Yes
USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Near Field Communication (NFC): Yes

Display & Graphics

Display Screen: Yes
Screen Size: 4" (101.60 mm)
Display Screen Type: LCD

Media Types & Handling

Media Type: Roll Fed,Fanfold,Tag Stock,Continuous Receipt,Continuous Paper,Wristband
Media Sensor: Full Width Sensor,Moveable Reflective/Black Mark Sensor,Multi-position Transmissive/Gap Sensor
Media Thickness: 7.5 mil (0.19 mm)
Maximum Roll Diameter: 5" (127 mm)
Maximum Label Width: 2.24" (57 mm)
Maximum Label Length: 39.02" (991 mm)

Fonts & Emulation

Language Emulation: ZPL II,EPL II,XML,ZBI,EPL,ZPL

Software

Operating System Supported:

• Link - OS

Power Description

Power Source: AC Supply

Environmental Conditions

Operating Temperature: 40°F (4.4°C) - 105°F (40.6°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: 40°F (4.4°C) - 140°F (60°C)
Storage Relative Humidity: 5% - 95%

Physical Characteristics

Height: 5.93" (150.70 mm)
Width: 6.99" (177.50 mm)
Depth: 8.69" (220.80 mm)

Miscellaneous

Package Contents:

• ZD421 4-inch Desktop Printer
• empty ribbon take-up cores (1 in. and 0.5 in.)
• 2 x 300 m ribbon core adapters for non-Zebra ribbon
• AC power supply
• Power cord(s)
• USB cable
• Quick Start Guide
• Regulatory Guide

Platform Supported: PC,Android,iOS
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
