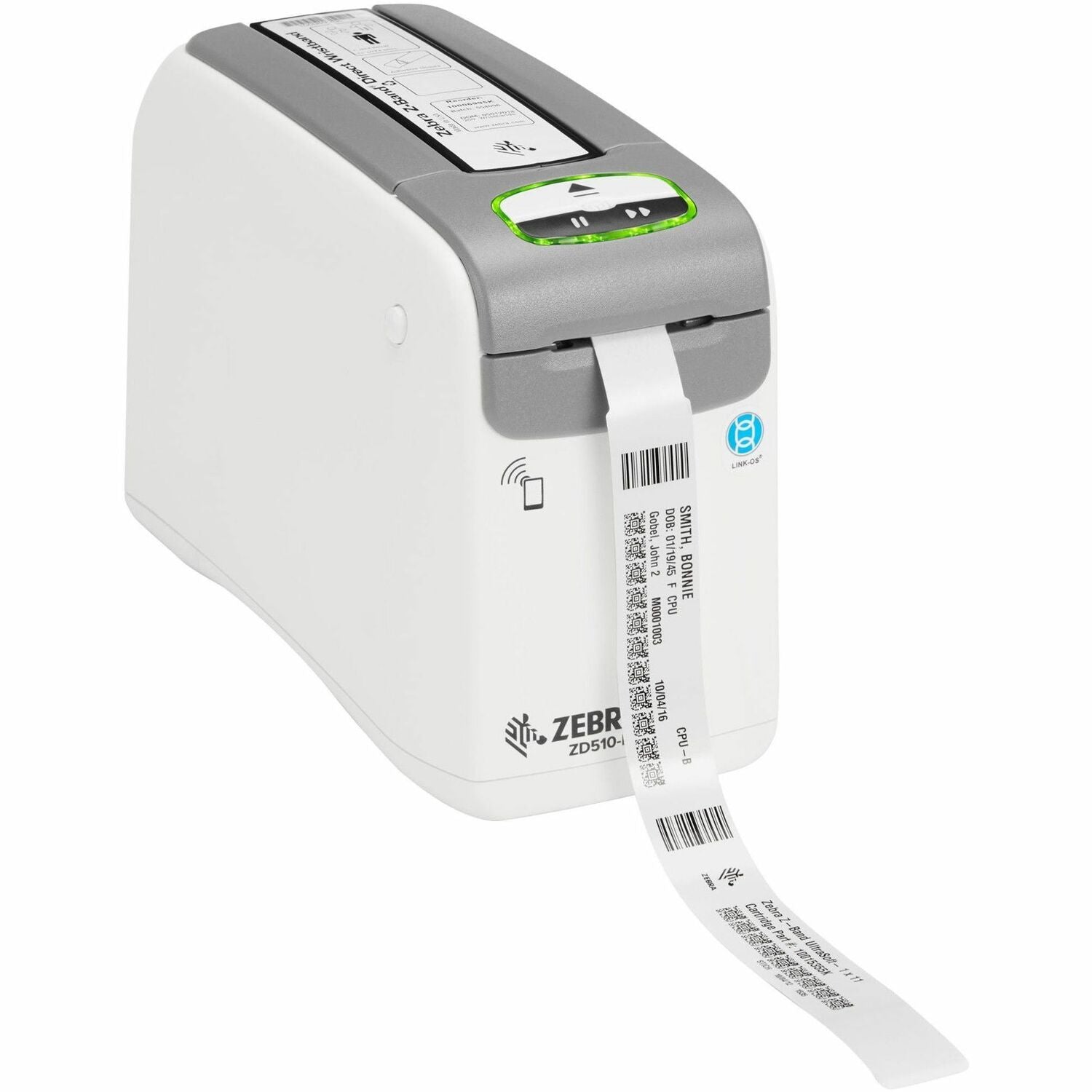

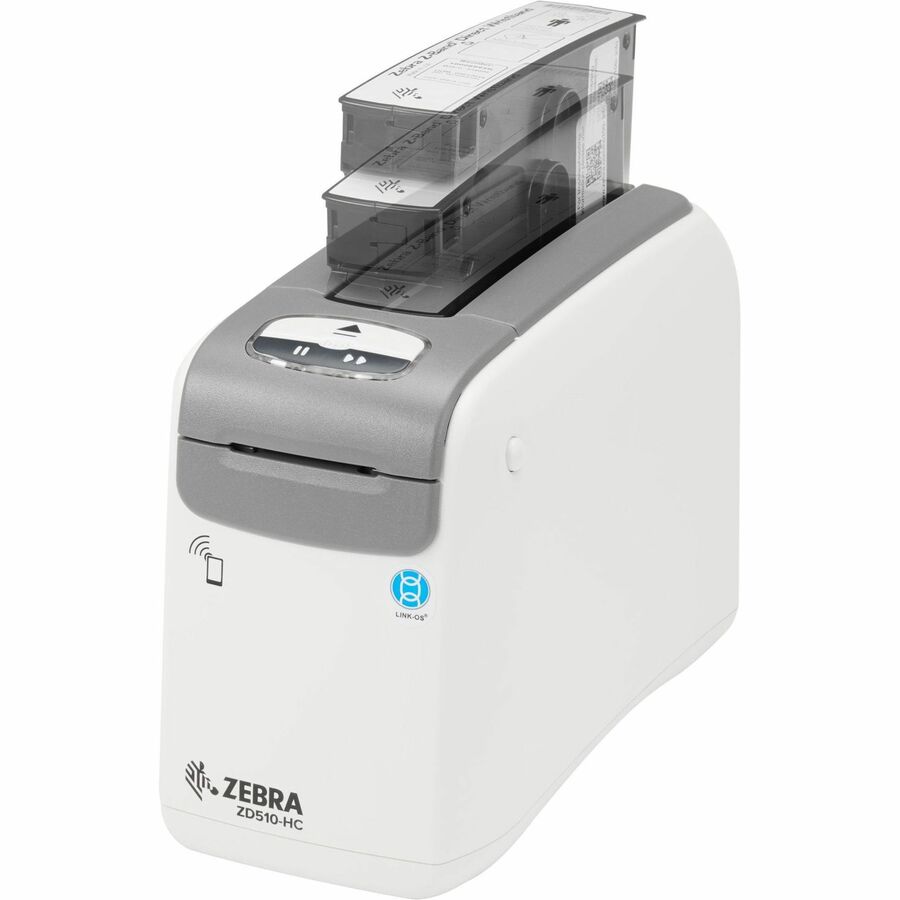

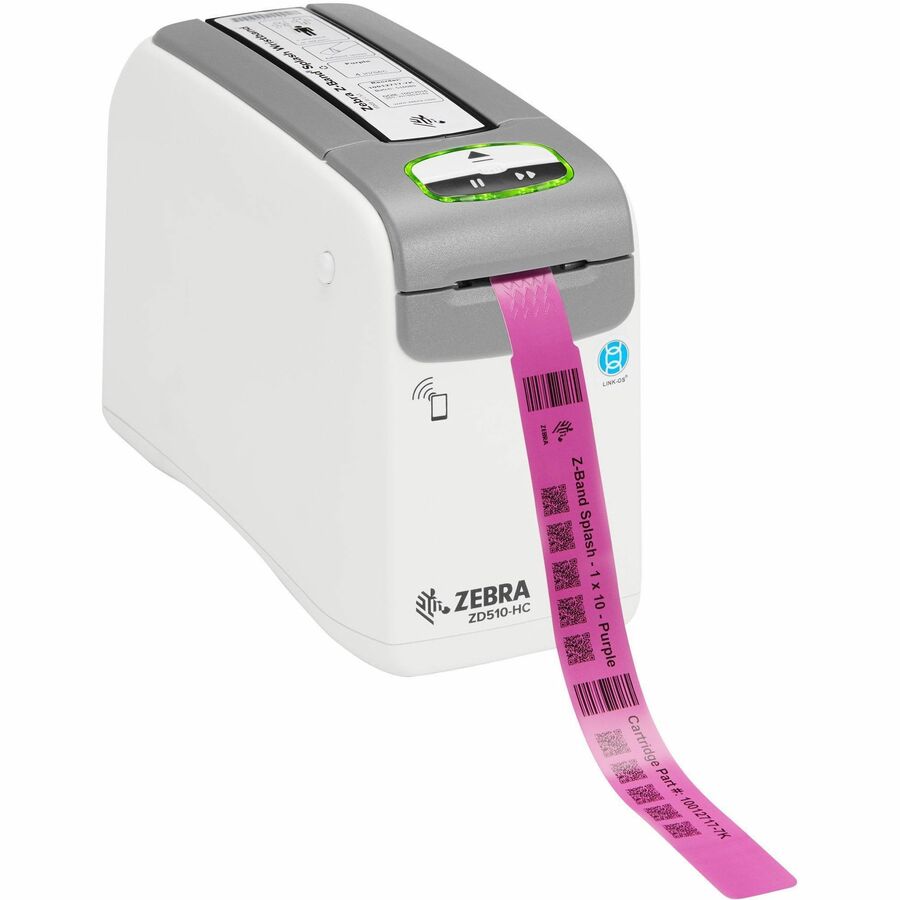

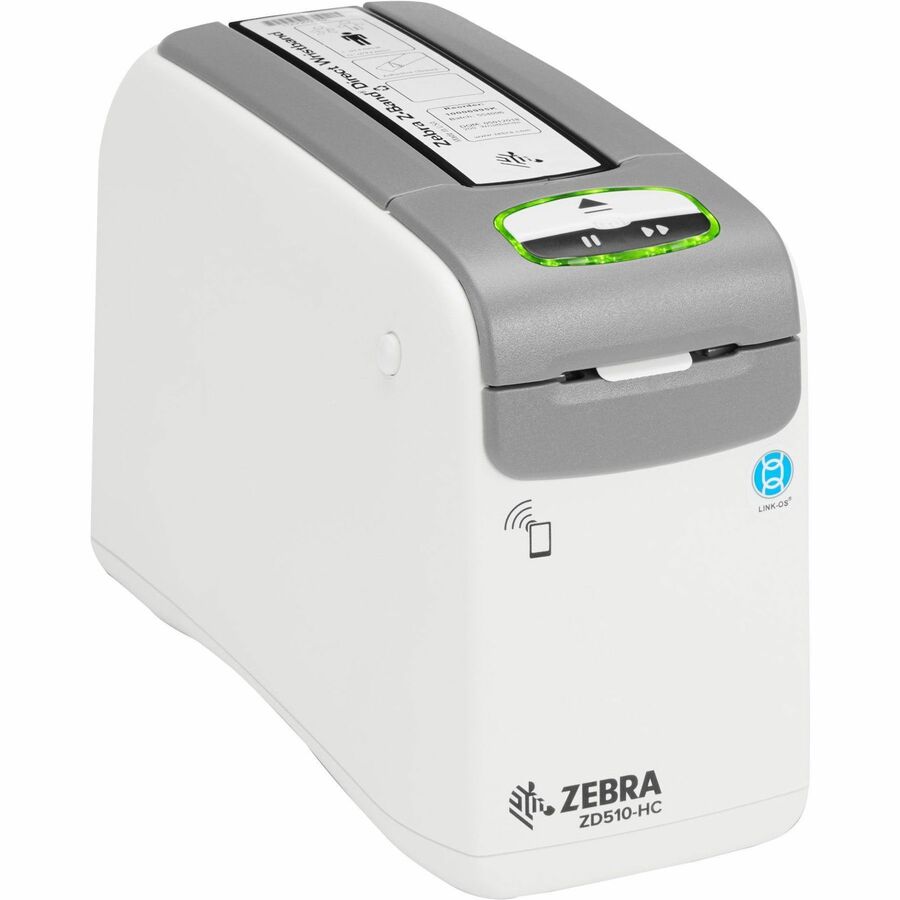

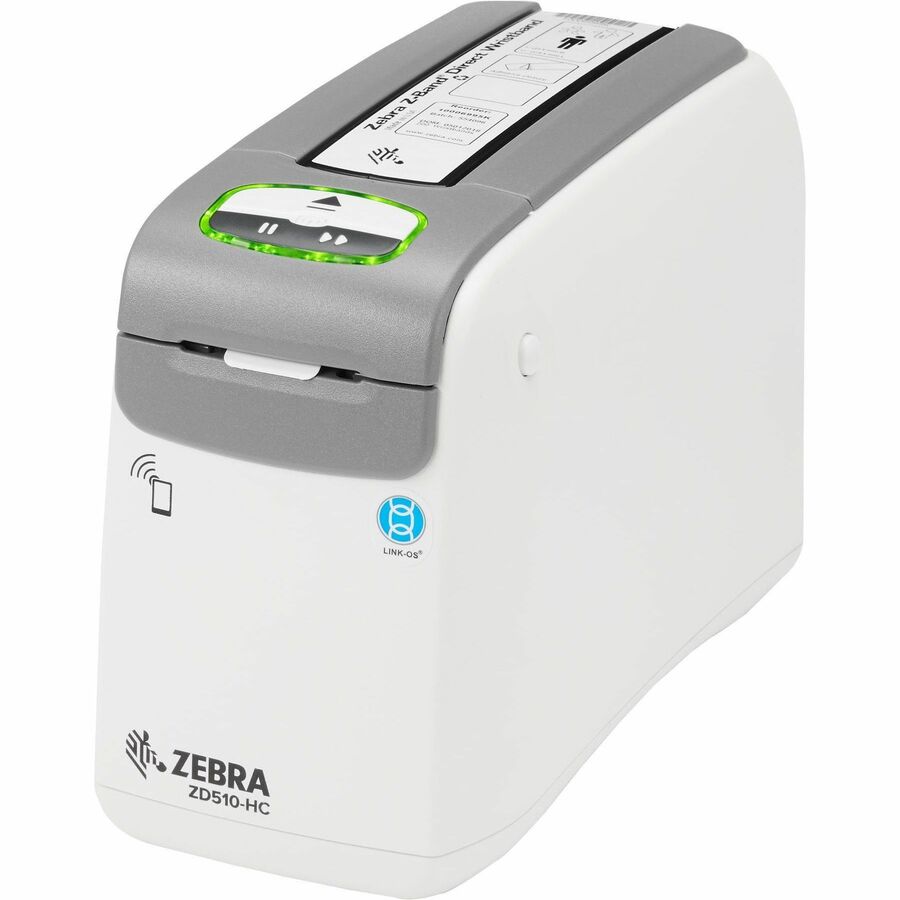

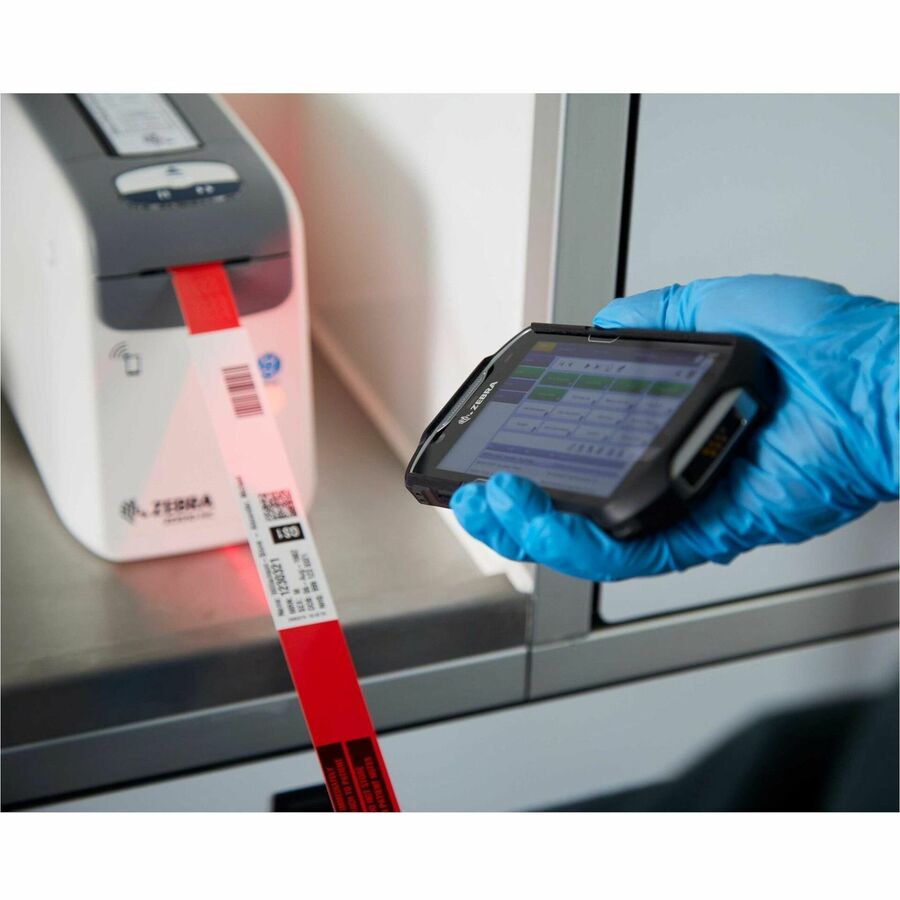

ZD51013-D01E00GA Zebra ZD510-HC Direct Thermal Printer - Monochrome - Portable - Wristband Print - Fast Ethernet - USB - USB Host - Bluetooth - Near Field Communication (NFC) - EU, UK

General Information

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD51013D01E00GA
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Model: ZD510-HC
Product Name: ZD510-HC Wristband Printing Solution

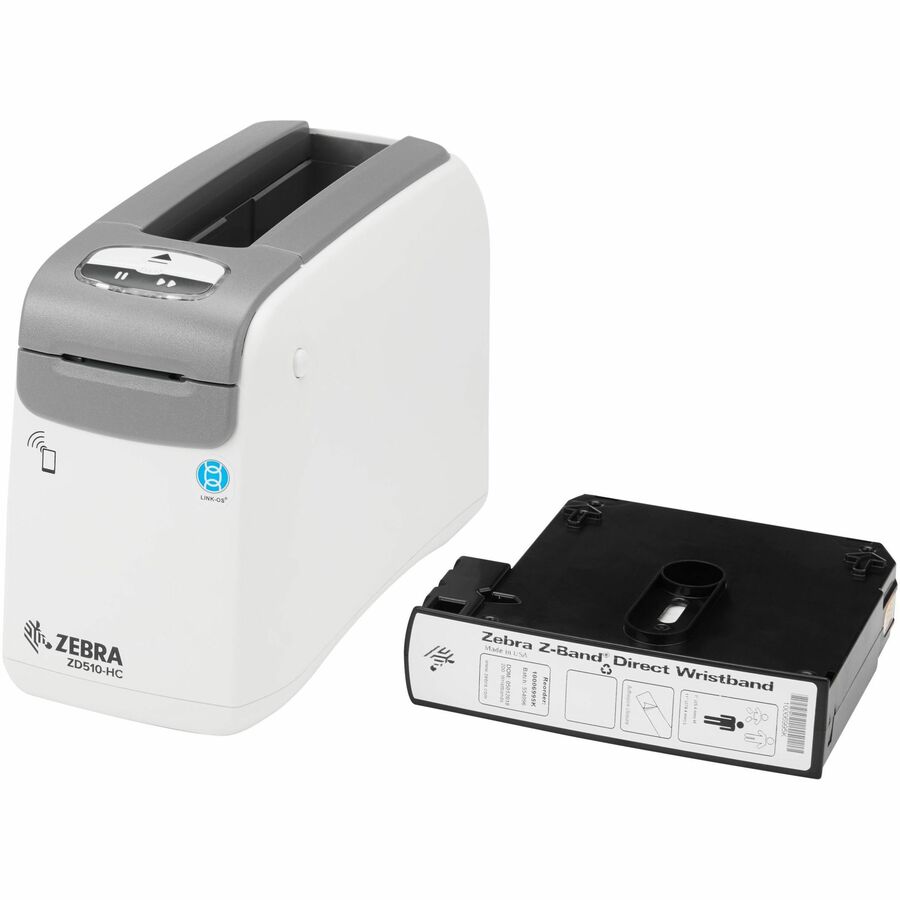

Marketing Information: No matter what kind of wristband printing solution you have, it’s easy to upgrade to the ZD510-HC. It’s backward compatible with the HC100 and uses the same wristband cartridges. There’s native ZPL support for easy migration from Zebra desktop printers. Using another vendor’s printer? The ZD510-HC can use languages associated with other printer brands. And the ZD510-HC offers all the latest wired and wireless connectivity and is validated for use with leading ADT Systems.
Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Wristband Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 102 mm/s
Maximum Print Resolution (dpi): 300
Maximum Print Length: 21.97" (558 mm)
Maximum Print Width: 1.19"
Barcode Symbology Supported: Codabar,Code 11,Code 39,Code 93,Code 128,EAN-8,EAN-13,EAN-14,GS1 DataBar,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Plessey,POSTNET,Standard 2 of 5,UPC-A,UPC-E,UPC-E with EAN 2 or 5 Digit Extension,Aztec Code,Codablock,Code 49,Data Matrix,Maxi Code,Micro PDF-417,PDF417,QR Code
Connectivity Technology: Wired
Real Time Clock: Yes
Features: Dual Wall Frame,Element Energy Equalizer
Mobile Device Printing: Yes

Memory

Standard Memory: 256 MB

Interfaces/Ports

USB Host: Yes
USB: Yes

Network & Communication

Network Ready: Yes
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Near Field Communication (NFC): Yes

Media Types & Handling

Media Type: Wristband

Fonts & Emulation

Language Emulation: XML,ZPL II

Power Description

Power Source: AC Supply

Environmental Conditions

Operating Temperature: 39.9°F (4.4°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 85%
Storage Temperature: 140°F (60°C)
Storage Relative Humidity: 5% - 85%

Physical Characteristics

Form Factor: Portable
Height: 7.01" (178 mm)
Width: 5" (127 mm)
Depth: 9.53" (242 mm)

Miscellaneous

Power Cable Localization: EU,UK
Certifications & Standards:

• FCC Part 15
• Subpart B
• VCCI, RCM
• (CE): EN 55032:2012 class B
• EN 55024:2010
• EN 61000-3-2
• EN 61000-3-3
• CISPR 32:2015
• CB Scheme IEC 60950-1
• IEC 62368-1
• T�V
• NRTL

Energy Star: Yes
TAA Compliant: Yes

Warranty

Limited Warranty: 1 Year
