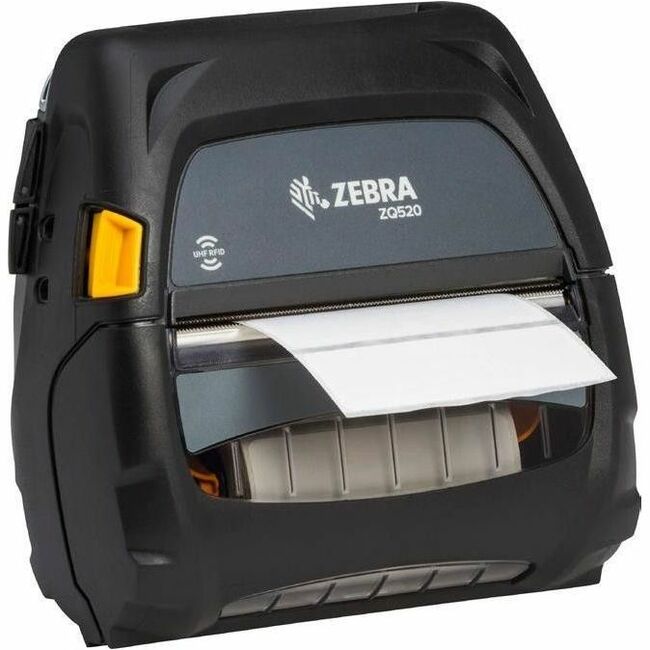

DS-ZQ5RAP1121299 Zebra ZQ520 Government, Transportation & Logistic Direct Thermal Printer - Monochrome - Portable - Label/Receipt Print - USB - Bluetooth - Wireless LAN - Near Field Communication (NFC) - RFID

General Information

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DSZQ5RAP1121299
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: ZQ500
Product Model: ZQ520
Product Name: ZQ520 Direct Thermal Printer
Marketing Information:

Zebra's ZQ500 Series offers bestin-class, rugged mobile printers for applications outside of a business's four walls. The premium 3" (72 mm) ZQ510™ and 4" (104 mm) ZQ520™ printers are Zebra's next-generation of high-performance mobile printers. The printers' patented, military-grade design provides exceptional durability and reliability in the toughest environments.

Optimized for on-demand receipt printing in transportation & logistics and government, the ZQ500 Series can also produce labels for a range of applications. These printers can withstand the drops, bangs, bumps, accidents and environmental extremes that are common in mobile workplaces- making them ideal for on-the-go employees whose productivity depends on maximum printer functionality.

With Zebra's ZQ500 Series, you gain the peace of mind knowing your mobile printers will not only withstand the elements, but also provide the power, connectivity and reliability your mobile employees need. Qualified by a third-party
Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 127 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 39" (990.60 mm)
Maximum Print Width: 4.09"
Barcode Symbology Supported: Code 39,Code 93,UCC/EAN 128,Code 128,Codabar (NW-7),Interleaved 2 of 5,UPC-A,UPC-E,2 and 5 Digits Add-on,EAN-8,EAN-13,2D,PDF-417,Micro PDF-417,Maxi Code,QR Code,GS1 DataBar,MSI PLESSEY,FIM,POSTNET,Data Matrix,TLC 39,Code 11,ISBT-128,UPC-E with EAN 2 or 5 Digit Extension,Planet Code,Plessey,Standard 2 of 5,Industrial 2 of 5,LOGMARS,MSI,Codabar,Code 49,Codablock,AZTEC
Character Sets: Universal Font Scaling Technology (UFST),Agfa Monotype,Hebrew,Arabic,Cyrillic
Real Time Clock: Yes
Application/Usage: Government,Transportation & Logistic
Features: Rugged,Lightweight,Compact

Interfaces/Ports

USB: Yes

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n
Near Field Communication (NFC): Yes
RFID: Yes

Display & Graphics

Display Screen: Yes
Display Screen Type: LCD

Media Types & Handling

Media Type: Label,Receipt,Black Mark,Gap,Tag
Media Sensor: Black Mark Sensor,Gap Sensor
Media Thickness: 6.3 mil
Maximum Roll Diameter: 2.2"
Maximum Label Width: 4.45" (113 mm)

Fonts & Emulation

Language Emulation: CPCL,ZPL,ZBI,ESC/POS

Software

Operating System Supported:

• Link-OS

Reliability

Ingress Protection (IP) Rating: IP54

Power Description

Power Source: Battery

Environmental Conditions

Operating Temperature: 68°F (20°C) - 131°F (55°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: 86°F (30°C) - 150.8°F (66°C)
Storage Relative Humidity: 10% - 90%

Physical Characteristics

Form Factor: Portable
Height: 6.22" (158 mm)
Width: 6.10" (155 mm)
Depth: 2.64" (67 mm)
Weight (Approximate): 784.7 g

Miscellaneous

Platform Supported: Android,iOS,PC
