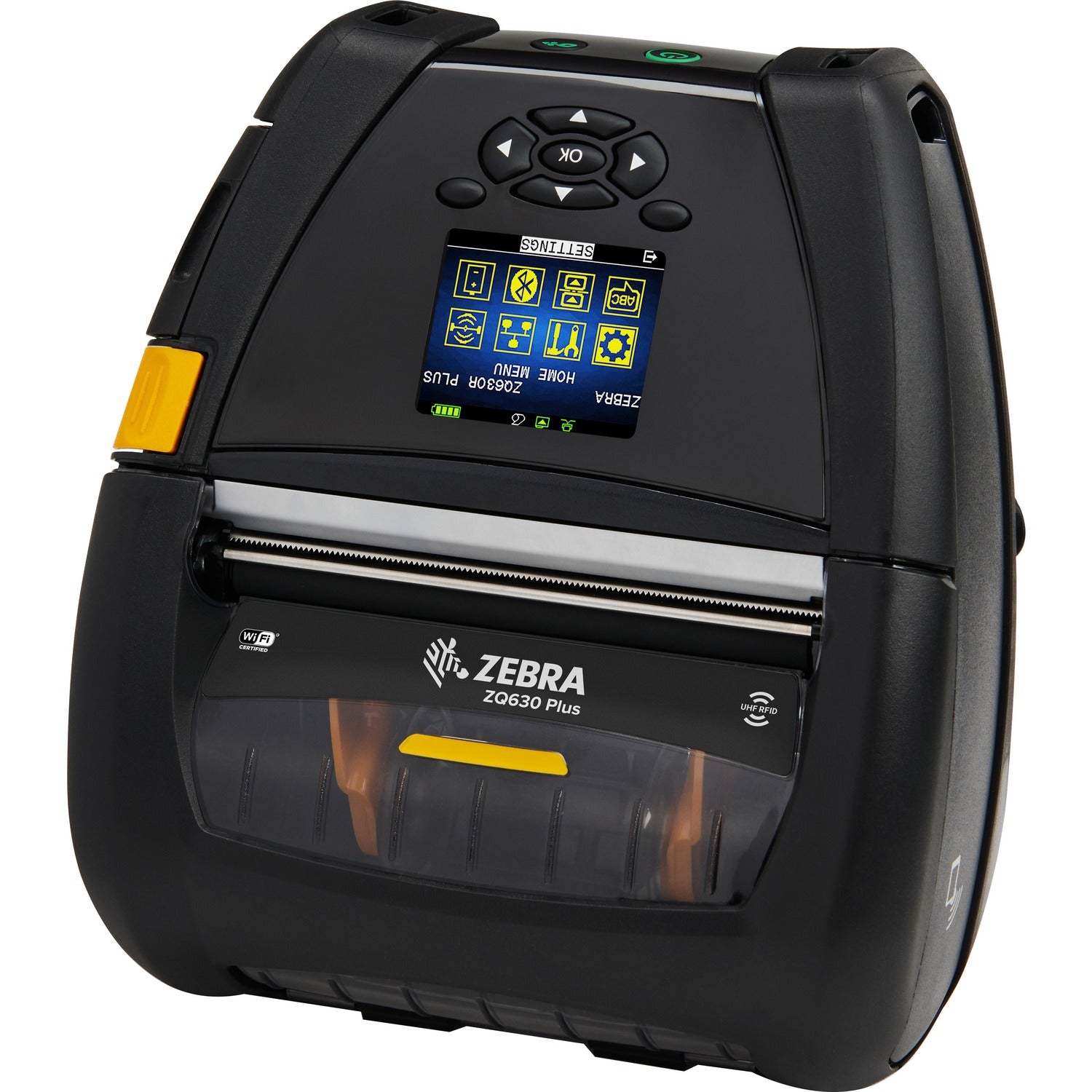

ZQ63-RUWA004-00 Zebra ZQ630 Plus Desktop, Industrial, Mobile Direct Thermal Printer - Monochrome - Label/Receipt Print - Bluetooth - Wireless LAN - Near Field Communication (NFC) - RFID

General Information

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZQ63-RUWA004-00
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: ZQ600
Product Model: ZQ630 Plus
Product Name: ZQ630 Plus Direct Thermal Printer
Marketing Information: Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long
Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 115 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 32.01" (813 mm)
Maximum Print Width: 4.09"
Barcode Symbology Supported: Code 39,Code 93,UCC/EAN 128,Code 128,Codabar (NW-7),Interleaved 2 of 5,UPC-A,UPC E with 2 and 5 add on,EAN-8,EAN-13,PDF417,Micro PDF-417,Maxi Code,QR Code,GS1 DataBar,AZTEC,MSI PLESSEY,FIM,POSTNET,Data Matrix,TLC 39,2 and 5 Digits Add-on
Character Sets: Universal Font Scaling Technology (UFST),Agfa Monotype
Connectivity Technology: Wireless
Application/Usage: Desktop,Industrial,Mobile
Features: Belt Clip,Shoulder Strap,Dust Resistant,Water Resistant
Mobile Device Printing: Yes

Memory

Standard Memory: 256 MB

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Near Field Communication (NFC): Yes
RFID: Yes

Display & Graphics

Display Screen: Yes

Media Types & Handling

Media Type: Gap,Black Mark,Receipt,Label,Die-cut Label,Tag,Linered Media,Black Bar
Media Sensor: Black Mark Sensor,Gap Sensor
Media Thickness: 6.5 mil
Maximum Roll Diameter: 2.6"
Maximum Label Width: 4.40" (111.76 mm)
Maximum Label Length: 32" (812.80 mm)

Fonts & Emulation

Language Emulation: CPCL,EPL,ZPL,ZBI 2.0,XML

Software

Operating System Supported: Link-OS

Reliability

Ingress Protection (IP) Rating: IP54

Power Description

Power Source: Battery

Battery Information

Battery Capacity: 6800 mAh

Environmental Conditions

Operating Temperature: -4°F (-20°C) - 122°F (50°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity: 10% - 90%

Physical Characteristics

Height: 3.25" (82.55 mm)
Width: 6.50" (165.10 mm)
Depth: 7.35" (186.69 mm)
Weight (Approximate): 1.10 kg

Miscellaneous

Optional Connectivity: Serial (RS-232),USB,Ethernet
Platform Supported: iOS,Android,PC
Certifications & Standards:

Emissions:

• FCC Part 15
• Subpart B
• EN55022 Class-B
• EN60950
• EN55024
• VCCI class B

Susceptibility:

• EN55024
• EN61000-4-2
• EN61000-4-3
• EN61000-4-4
• EN61000-4-5

Safety:

• CE
• TUV
• CSA

Warranty

Limited Warranty: 1 Year
