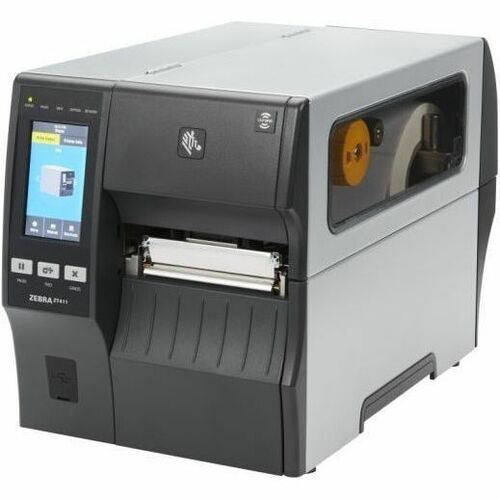

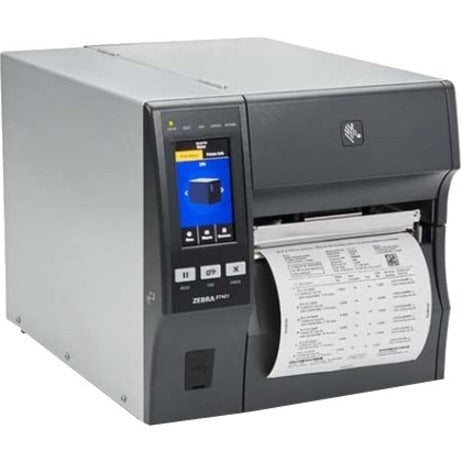

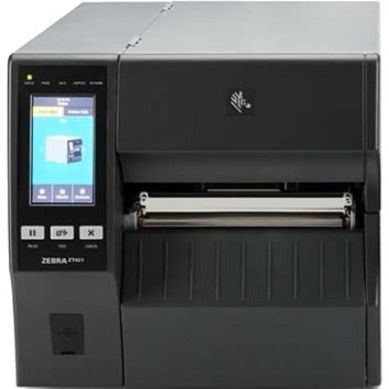

ZT42162-T010000Z Zebra ZT421 Industrial Direct Thermal/Thermal Transfer Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Serial - Bluetooth 4.1 - With Cutter

General Information

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZT42162-T010000Z
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: ZT400
Product Model: ZT421
Product Name: ZT421 Industrial Printer
Product Type: Direct Thermal/Thermal Transfer Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 12.01 in/s (305 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Length: 102" (2590.80 mm)
Maximum Print Width: 6.60" (167.64 mm)
Barcode Symbology Supported: Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-A/E,EAN-8,EAN-13,EAN 2 or 5 Digit Extension,UPC 2 or 5 Digit Extension,Plessey,Planet Code,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Codabar,2D,Codablock,PDF417,Code 49,Data Matrix,Maxi Code,QR Code,TLC 39,Micro PDF,RSS-14,AZTEC
Character Size: 0.39" (10 mm) x 0.35" (8.86 mm)
Connectivity Technology: Wired & Wireless
Fonts Included: A,B,C,D,E,F,G,H,GS,P,Q,R,S,T,U,V,�
Application/Usage: Industrial
Features: Auto-calibration,Barcoding,Bi-color LED,Robust,Odometer,Status Reporting,Mirror Printing

Memory

Standard Memory: 256 MB
Flash Memory: 512 MB

Interfaces/Ports

USB Host: Yes
Serial Port: Yes
USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Bluetooth Version: 4.1

Display & Graphics

Screen Size: 4.3"
Touchscreen: Yes

Cutter

Cutter: Yes
Cutter Type: Tear Bar

Media Types & Handling

Media Type: Continuous Paper,Die-cut Label,Notch,Black Mark,Film,Label,Linered Media,Roll Paper
Media Sensor: Dual Media Sensor,Transmissive Media Sensor,Reflective Media Sensor,Gap Sensor,Notch Presence Sensor,Black Mark Sensor
Media Thickness: 10 mil (0.254 mm)
Maximum Roll Diameter: 8" (203.20 mm)
Maximum Label Width: 7" (177.80 mm)
Maximum Label Length: 39" (990.60 mm)

Fonts & Emulation

Language Emulation: ZPL,ZPL II,EPL,XML,EPL2

Power Description

Power Source: AC Supply

Environmental Conditions

Operating Temperature: 41°F (5°C) - 104°F (40°C)
Storage Temperature: 40°F (4.4°C) - 140°F (60°C)

Physical Characteristics

Height: 12.75" (323.85 mm)
Width: 13.25" (336.55 mm)
Depth: 19.50" (495.30 mm)
Weight (Approximate): 40 lb (18143.69 g)

Miscellaneous

Compatibility: Mainframe,Mini,Pc Hosts
Platform Supported: PC
Certifications & Standards:

cTUVus, CE, FCC, ICES-003(B), VCCI, RCM, NOM, S-Mark, CCC, EAC, BSMI, KCC, SABS, In-Metro, BIS.

Energy Star: Yes
