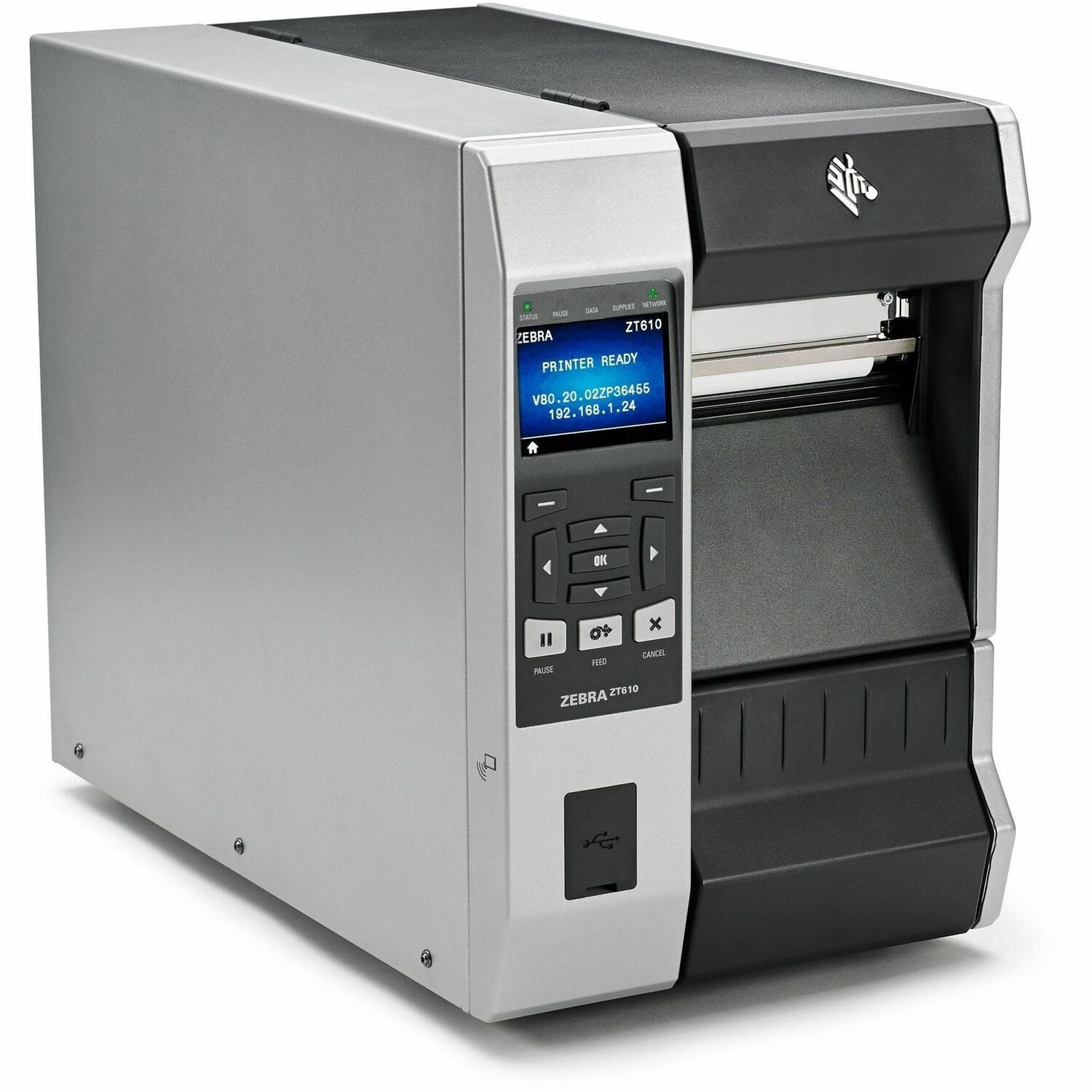

ZT61042-T010100Z Zebra ZT610 Industrial, Healthcare, Retail, Transportation & Logistic, Manufacturing, Packaging Label, Distribution Center, Laboratory, Asset Tracking, Pharmacy Direct Thermal/Thermal Transfer Printer - Monochrome - Label Print - Gigabit

General Information

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZT61042-T010100Z
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: ZT600
Product Model: ZT610
Product Name: ZT610 Industrial Printer
Marketing Information:

ZT600 Series Industrial Printers

The next generation Xi Series, now with more intelligence and industrial brawn

Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you're concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today- and for years to come.

24/7 Reliability in the Harshest Environments

ZT600 Series printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure. Plus, they meet your high-volume production needs, day in and day out, with superior print quality and speed across
Product Type: Direct Thermal/Thermal Transfer Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 14.02 in/s (356 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Length: 12.50 ft (3810 mm)
Maximum Print Width: 4.09" (104 mm)
Barcode Symbology Supported: Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-A/E,EAN-8,EAN-13,EAN 2 or 5 Digit Extension,UPC 2 or 5 Digit Extension,Plessey,Planet Code,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Codabar,2D,Codablock,PDF417,Code 49,Data Matrix,Maxi Code,QR Code,TLC 39,Micro PDF,RSS-14,AZTEC
Character Size: 4.49" (114 mm)
Connectivity Technology: Wired & Wireless
Application/Usage: Industrial,Healthcare,Retail,Transportation & Logistic,Manufacturing,Packaging Label,Distribution Center,Laboratory,Asset Tracking,Pharmacy
Features: Durable,Robust,Barcoding

Memory

Standard Memory: 1 GB
Flash Memory: 2 GB

Interfaces/Ports

Serial Port: Yes
USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Gigabit Ethernet
Bluetooth: Yes
Bluetooth Version: 4.0

Display & Graphics

Screen Size: 4.3"
Touchscreen: Yes

Media Types & Handling

Media Type: Black Mark,Notch,Continuous Label,Die-cut Label,Label,Continuous Paper,Notched
Media Sensor: Dual Media Sensor,Transmissive Media Sensor,Reflective Media Sensor
Media Thickness: 9.8 mil (0.25 mm)
Maximum Roll Diameter: 8" (203 mm)
Maximum Label Width: 4.49" (114 mm)

Fonts & Emulation

Language Emulation: ZPL,ZPL II,XML

Software

Operating System Supported:

Zebra Link-OS

Power Description

Power Source: AC Supply

Environmental Conditions

Operating Temperature: 32°F (0°C) - 104°F (40°C)
Storage Temperature: -22°F (-30°C) - 140°F (60°C)

Physical Characteristics

Height: 15.58" (395.73 mm)
Width: 10.56" (268.22 mm)
Depth: 19.88" (504.95 mm)
Weight (Approximate): 50 lb (22679.62 g)

Miscellaneous

Optional Connectivity: Parallel,Wireless LAN
Certifications & Standards:

cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, INMetro

Energy Star: Yes
